1.
mediasoup
Powerful WebRTC SFU for Node.js
IÑAKI BAZ CAS

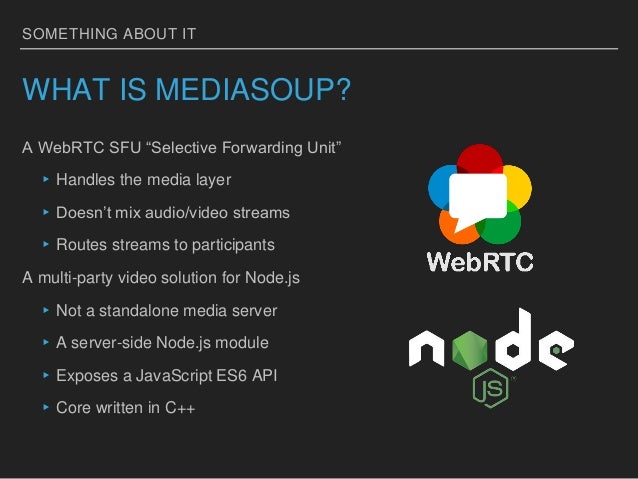

2.
SOMETHING ABOUT IT
WHAT IS MEDIASOUP?
A WebRTC SFU “Selective Forwarding Unit”
▸Handles the media layer
▸Doesn’t mix audio/video streams
▸Routes streams to participants
A multi-party video solution for Node.js
▸Not a standalone media server
▸A server-side Node.js module
▸Exposes a JavaScript ES6 API
▸Core written in C++

3.
TOPOLOGIES
MULTI-PARTY VIDEO CONFERENCING

4.

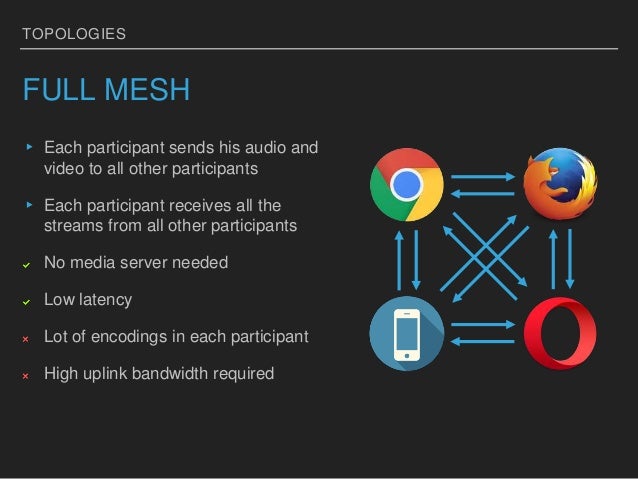

TOPOLOGIES
FULL MESH
▸ Each participant sends his audio and
video to all other participants
▸ Each participant receives all the
streams from all other participants
No media server needed
Low latency
Lot of encodings in each participant
High uplink bandwidth required

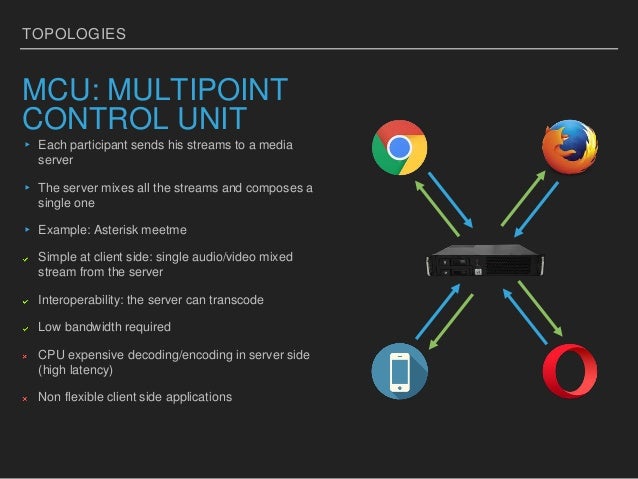

5.
TOPOLOGIES
MCU: MULTIPOINT
CONTROL UNIT
▸ Each participant sends his streams to a media
server
▸ The server mixes all the streams and composes a
single one
▸ Example: Asterisk meetme
Simple at client side: single audio/video mixed
stream from the server
Interoperability: the server can transcode
Low bandwidth required
CPU expensive decoding/encoding in server side
(high latency)
Non flexible client side applications

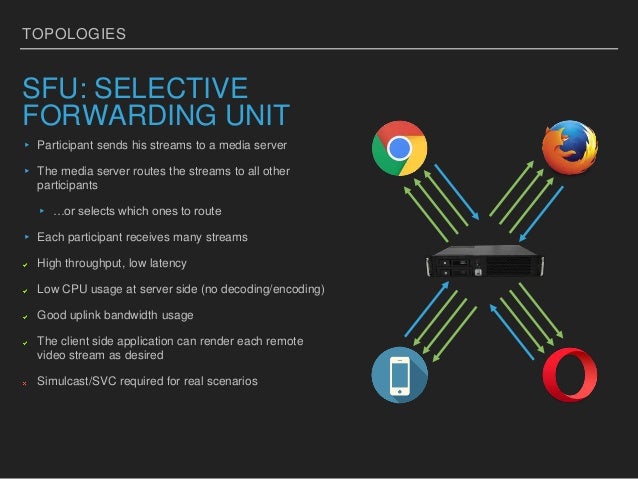

6.
TOPOLOGIES
SFU: SELECTIVE
FORWARDING UNIT
▸ Participant sends his streams to a media server
▸ The media server routes the streams to all other
participants
▸ …or selects which ones to route
▸ Each participant receives many streams
High throughput, low latency
Low CPU usage at server side (no decoding/encoding)
Good uplink bandwidth usage
The client side application can render each remote
video stream as desired
Simulcast/SVC required for real scenarios

7.

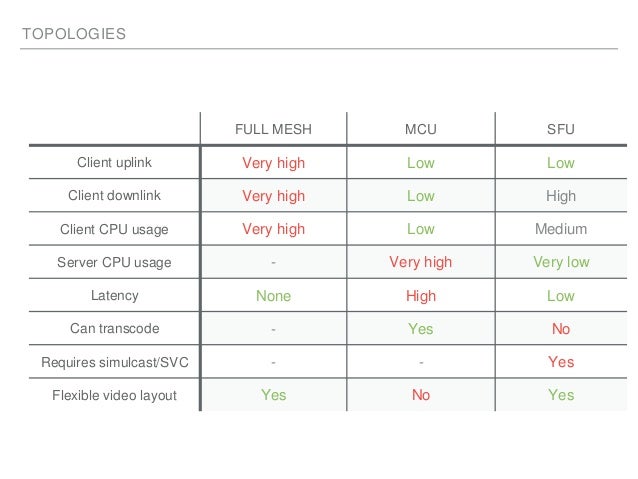

TOPOLOGIES
FULL MESH MCU SFU
Client uplink Very high Low Low
Client downlink Very high Low High
Client CPU usage Very high Low Medium
Server CPU usage - Very high Very low
Latency None High Low
Can transcode - Yes No
Requires simulcast/SVC - - Yes
Flexible video layout Yes No Yes

8.
MEDIASOUP
IS AN SFU
YES!

9.
MEDIASOUP
IS
MINIMALIST

10.

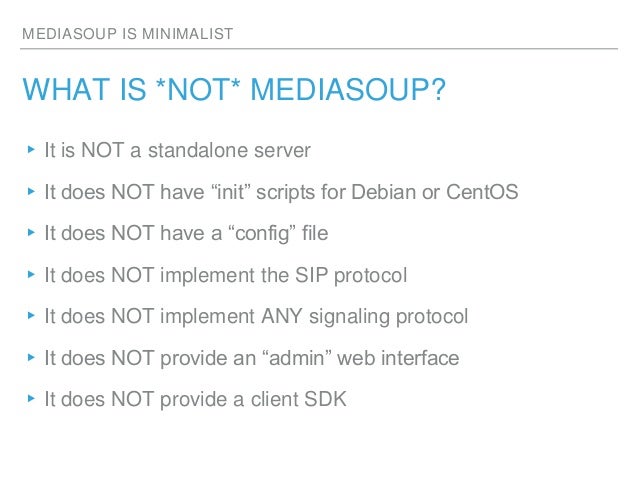

MEDIASOUP IS MINIMALIST
WHAT IS *NOT* MEDIASOUP?
▸It is NOT a standalone server
▸It does NOT have “init” scripts for Debian or CentOS
▸It does NOT have a “config” file
▸It does NOT implement the SIP protocol
▸It does NOT implement ANY signaling protocol
▸It does NOT provide an “admin” web interface
▸It does NOT provide a client SDK

11.
MEDIASOUP IS A
NODE.JS MODULE
Yours truly
REMEMBER

12.
SO
WHAT?
OK…

13.
$ npm install —save mediasoup

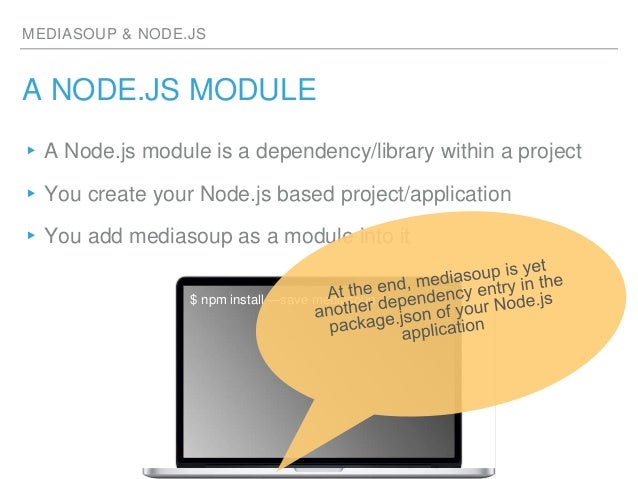

MEDIASOUP & NODE.JS
A NODE.JS MODULE
▸A Node.js module is a dependency/library within a project
▸You create your Node.js based project/application
▸You add mediasoup as a module into it

14.
MEDIASOUP & NODE.JS
A PACKAGE.JSON EXAMPLE
{
"name": "my-amazing-multiconference-server-app",
"version": "1.0.0",
"description": "Enterprise conferencing application",
"main": "index.js",
"author": "My Great Company",
"license": "UNLICENSED",
"dependencies": {
"express": "^4.14.0",
"mediasoup": "^1.0.0",
"socket.io": "^1.5.0"
}
}

15.
WHY NODE.JS?
ASK THEM

16.

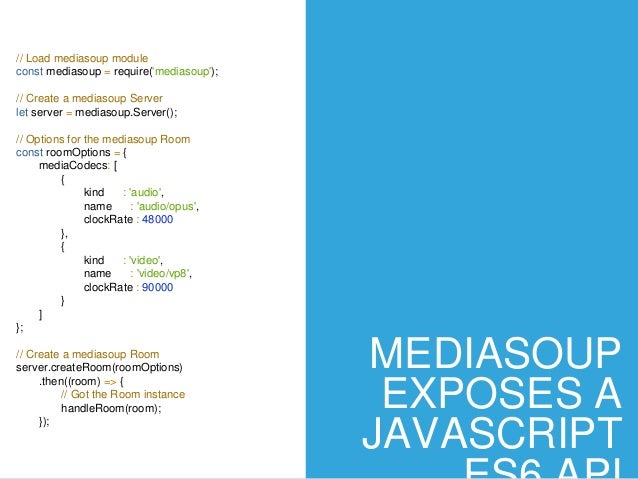

MEDIASOUP
EXPOSES A
JAVASCRIPT
// Load mediasoup module
const mediasoup = require('mediasoup');
// Create a mediasoup Server
let server = mediasoup.Server();
// Options for the mediasoup Room
const roomOptions = {
mediaCodecs: [
{
kind : 'audio',
name : 'audio/opus',
clockRate : 48000
},
{
kind : 'video',
name : 'video/vp8',
clockRate : 90000
}
]
};
// Create a mediasoup Room
server.createRoom(roomOptions)
.then((room) => {
// Got the Room instance
handleRoom(room);
});

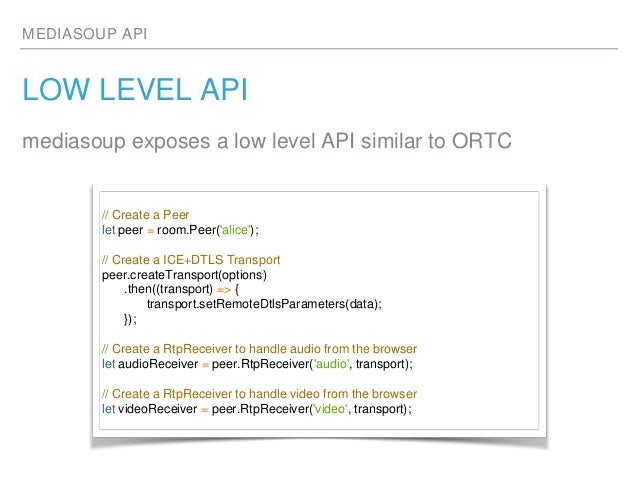

17.
MEDIASOUP API
LOW LEVEL API
mediasoup exposes a low level API similar to ORTC
// Create a Peer
let peer = room.Peer('alice');
// Create a ICE+DTLS Transport
peer.createTransport(options)
.then((transport) => {
transport.setRemoteDtlsParameters(data);
});
// Create a RtpReceiver to handle audio from the browser
let audioReceiver = peer.RtpReceiver('audio', transport);
// Create a RtpReceiver to handle video from the browser
let videoReceiver = peer.RtpReceiver('video', transport);

18.

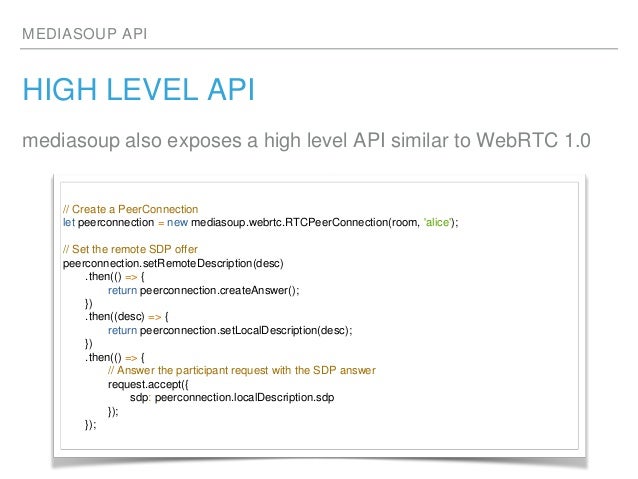

MEDIASOUP API
HIGH LEVEL API
mediasoup also exposes a high level API similar to WebRTC 1.0
// Create a PeerConnection
let peerconnection = new mediasoup.webrtc.RTCPeerConnection(room, 'alice');
// Set the remote SDP offer
peerconnection.setRemoteDescription(desc)
.then(() => {
return peerconnection.createAnswer();
})
.then((desc) => {
return peerconnection.setLocalDescription(desc);
})
.then(() => {
// Answer the participant request with the SDP answer
request.accept({
sdp: peerconnection.localDescription.sdp
});
});

19.
MEDIASOUP JUST
FORWARDS MEDIA
REMEMBER
Sincerely yours

20.

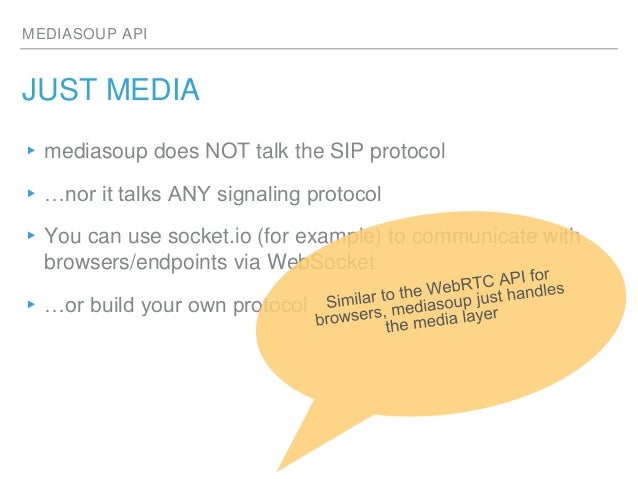

MEDIASOUP API
JUST MEDIA
▸mediasoup does NOT talk the SIP protocol
▸…nor it talks ANY signaling protocol
▸You can use socket.io (for example) to communicate with
browsers/endpoints via WebSocket
▸…or build your own protocol

21.
ROADM
AP

22.

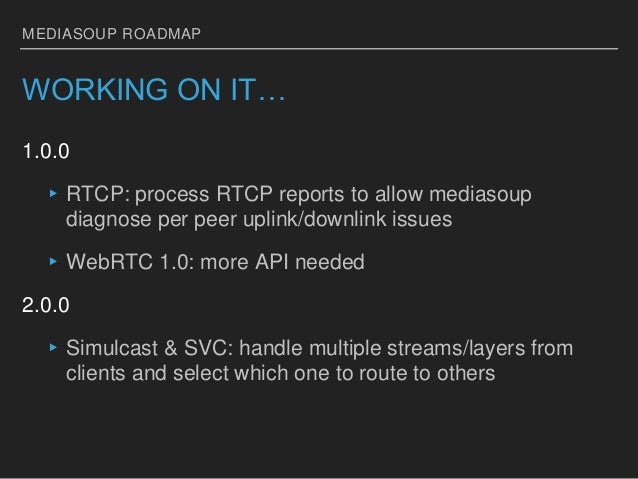

MEDIASOUP ROADMAP
WORKING ON IT…
1.0.0
▸RTCP: process RTCP reports to allow mediasoup
diagnose per peer uplink/downlink issues
▸WebRTC 1.0: more API needed
2.0.0
▸Simulcast & SVC: handle multiple streams/layers from
clients and select which one to route to others

23.
YOUR TURN
THE

24.
THE APPLICATION
ASK YOURSELF
▸ Want to build yet another boring
enterprise conferencing app?
▸ May be a funny social app?
▸ Will you build the app on Node.js?
▸ Browser app? mobile app? native
Android/iOS SDKs?
▸ Do you need interoperability with
PSTN? Really?

25.
LET’S DEMO !!!

26.

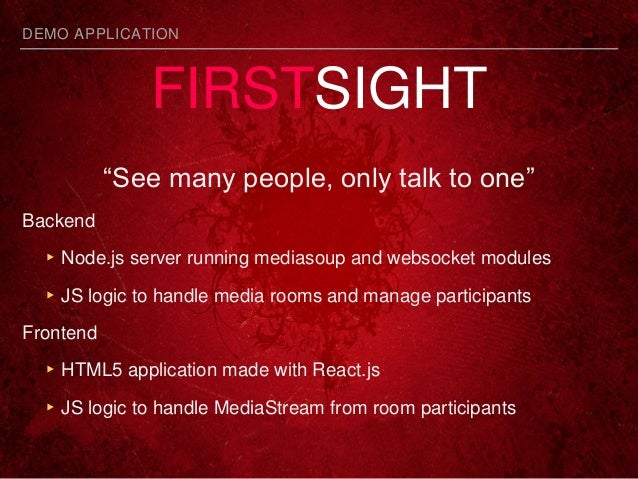

DEMO APPLICATION
FIRSTSIGHT
“See many people, only talk to one”
Backend
▸Node.js server running mediasoup and websocket modules
▸JS logic to handle media rooms and manage participants
Frontend
▸HTML5 application made with React.js
▸JS logic to handle MediaStream from room participants

27.
MUCHAS GRACIAS
Iñaki Baz Castillo
THE END
http://mediasoup.org
