The Near Future of CSS
Rachel Andrew
Rachel Andrew
» https://rachelandrew.co.uk
» https://grabaperch.com
» @rachelandrew
» Invited Expert to the CSS Working Gr...
Box Alignment Level 3
This is the vertical centering
module!
Centre the content of .box
.box {
display: flex;
align-items: center;
justify-content: center;
}
<div class="box">
<img alt...
CSS Box Alignment Level 3
"The box alignment properties in CSS are a set of 6 properties that
control alignment of boxes w...
CSS Box Alignment Level 3
Defines:
» justify-content
» align-content
» justify-self
» align-self
» justify-items
» align-i...
.wrapper {
display: flex;
}
.wrapper li {
min-width: 1%;
flex: 1 0 25%;
}
.wrapper li:nth-child(2) {
align-self: center;
}
....
The Box Alignment spec defines
how these properties work in other
layout methods
.wrapper {
display: grid;
grid-template-columns: 1fr 1fr 1fr 1fr;
}
.wrapper li {
min-width: 1%;
}
.wrapper li:nth-child(2...
CSS Grid Layout
"Unlike Flexbox, however, which is single-axis–oriented, Grid Layout is
optimized for 2-dimensional layout...
Defining a simple grid
.cards {
display:grid;
grid-template-columns: 1fr 1fr 1fr;
grid-gap: 10px;
}
The fr unit
Defines a fraction unit - a fraction of the available space.
Works in a similar way to using flex-grow with a p...
Wrapped Flexbox Layout
.cards {
display:flex;
flex-wrap: wrap;
}
.card {
flex: 1 1 250px;
margin: 5px;
}
http://codepen.io/ra...
.cards {
display:grid;
grid-template-columns: repeat(auto-fill, minmax(200px,1fr));
grid-gap: 10px;
}
http://codepen.io/rac...
.cards {
display:grid;
grid-template-columns: repeat(12,1fr);
grid-gap: 10px;
}
.card:nth-child(1) { grid-column: 1 / 4; }...
.card:nth-child(1) { grid-area: side1; }
.card:nth-child(2) { grid-area: side2; }
.card:nth-child(3) { grid-area: side3; }...
.cards {
display:grid;
grid-template-columns: repeat(4, 1fr);
grid-gap: 10px;
grid-template-areas:
"side1 middle1 middle1 ...
Lots of Grid Examples
http://gridbyexample.com
CSS Shapes
"CSS Shapes describe geometric shapes for use in CSS. For Level 1, CSS
Shapes can be applied to floats. A circl...
A simple circle
.balloon {
float: left;
width: 429px;
shape-outside: circle(50%);
}
<div class="box">
<img class="balloon" ...
Floating generated content to use
Shapes
.box::before {
content: "";
display: block;
float: left;
width: 429px;
height: 409...
Shapes and clip-path
.balloon {
float: right;
width: 640px;
height: 427px;
shape-outside: ellipse(33% 50% at 460px);
-webki...
CSS Feature Queries with
@supports
Like Modernizr but in native CSS.
"The ‘@supports’ rule is a conditional group rule who...
Does my browser support
display: flex?
@supports (display: flex) {
.has-flex {
display: block;
background-color: #0084AD;
col...
Does my browser support
display: grid?
@supports (display: grid) {
.has-grid {
display: block;
background-color: #284C6D;
...
Test more than 1 thing
@supports ((display: grid) and (shape-outside: circle())) {
.has-grid-shapes {
display: block;
back...
.balloon {
border: 1px solid #999;
padding: 2px;
}
@supports ((shape-outside: ellipse()) and ((clip-path: ellipse()) or (-...
Using feature queries
» Write the css for older browsers
» Inside the feature query reset those properties
» Inside the fe...
CSS Custom Properties
(CSS Variables!)
CSS Custom Properties
"This module introduces a family of custom author-defined properties
known collectively as custom pr...
:root {
--primary: blue;
--secondary: orange;
}
h1 {
color: var(--primary);
}
http://codepen.io/rachelandrew/pen/qNXpEZ
Testing for custom properties
:root {
--primary: blue;
--secondary: orange;
}
@supports (--primary: blue) {
h1 {
color: va...
Getting Involved
CSS Specification discussion and
issues are on github
https://github.com/w3c/csswg-drafts
Raise issues with browsers
» Mozilla https://bugzilla.mozilla.org/
» Edge https://developer.microsoft.com/en-us/microsoft-...
Request features
Directly request features where browsers give you the means to
do so.
Writing blog posts, presentations a...
If we don’t ask we
don’t get
Make some noise for the new shiny!
Thank you!
@rachelandrew
https://cssgrid.me/melbjs
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
The Near Future of CSS
Próxima SlideShare
Cargando en…5
×

The Near Future of CSS

96.172 visualizaciones

Publicado el

A presentation for MelbJS in Melbourne, Australia.

Publicado en: Tecnología
  • Secrets To Making Up These secrets will help you get back together with your ex. ➤➤ http://ow.ly/mOLD301xGxr
       Responder
    ¿Estás seguro?    No
    Tu mensaje aparecerá aquí
  • Controversial method reveals inner psychology of techniques you can use to get your Ex back! See it now! ♣♣♣ http://ow.ly/f23I301xGAo
       Responder
    ¿Estás seguro?    No
    Tu mensaje aparecerá aquí
  • How Bookies CHEAT and How to beat them?■■■ http://scamcb.com/zcodesys/pdf
       Responder
    ¿Estás seguro?    No
    Tu mensaje aparecerá aquí
  • Earn $90/day Working Online. You won't get rich, but it is going to make you some money! ■■■ https://tinyurl.com/y4urott2
       Responder
    ¿Estás seguro?    No
    Tu mensaje aparecerá aquí
  • Visit this site: tinyurl.com/sexinarea and find sex in your area for one night)) You can find me on this site too)
       Responder
    ¿Estás seguro?    No
    Tu mensaje aparecerá aquí

The Near Future of CSS

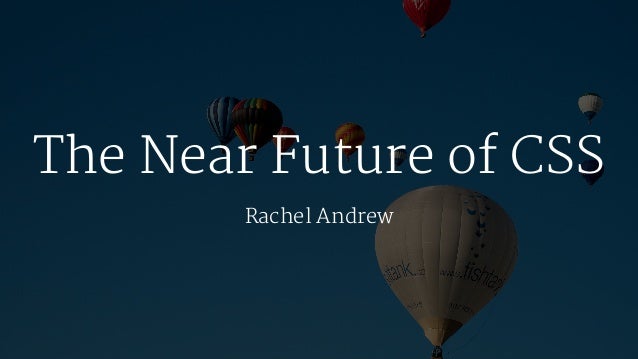

  1. The Near Future of CSS Rachel Andrew
  2. Rachel Andrew » https://rachelandrew.co.uk » https://grabaperch.com » @rachelandrew » Invited Expert to the CSS Working Group » Google Developer Expert
  3. Box Alignment Level 3 This is the vertical centering module!
  4. Centre the content of .box .box { display: flex; align-items: center; justify-content: center; } <div class="box"> <img alt="balloon" src="square-balloon.jpg"> </div> http://codepen.io/rachelandrew/pen/XKaZWm
  5. CSS Box Alignment Level 3 "The box alignment properties in CSS are a set of 6 properties that control alignment of boxes within other boxes." -- https://drafts.csswg.org/css-align/
  6. CSS Box Alignment Level 3 Defines: » justify-content » align-content » justify-self » align-self » justify-items » align-items
  7. .wrapper { display: flex; } .wrapper li { min-width: 1%; flex: 1 0 25%; } .wrapper li:nth-child(2) { align-self: center; } .wrapper li:nth-child(3) { align-self: flex-start; } .wrapper li:nth-child(4) { align-self: flex-end; } http://codepen.io/rachelandrew/pen/RavbmN
  8. The Box Alignment spec defines how these properties work in other layout methods
  9. .wrapper { display: grid; grid-template-columns: 1fr 1fr 1fr 1fr; } .wrapper li { min-width: 1%; } .wrapper li:nth-child(2) { align-self: center; } .wrapper li:nth-child(3) { align-self: start; } .wrapper li:nth-child(4) { align-self: end; } http://codepen.io/rachelandrew/pen/jqdNoL
  10. CSS Grid Layout "Unlike Flexbox, however, which is single-axis–oriented, Grid Layout is optimized for 2-dimensional layouts: those in which alignment of content is desired in both dimensions." -- https://drafts.csswg.org/css-grid/
  11. Defining a simple grid .cards { display:grid; grid-template-columns: 1fr 1fr 1fr; grid-gap: 10px; }
  12. The fr unit Defines a fraction unit - a fraction of the available space. Works in a similar way to using flex-grow with a positive value.
  13. Wrapped Flexbox Layout .cards { display:flex; flex-wrap: wrap; } .card { flex: 1 1 250px; margin: 5px; } http://codepen.io/rachelandrew/pen/Gqvrwz
  14. .cards { display:grid; grid-template-columns: repeat(auto-fill, minmax(200px,1fr)); grid-gap: 10px; } http://codepen.io/rachelandrew/pen/VjzrgG
  15. .cards { display:grid; grid-template-columns: repeat(12,1fr); grid-gap: 10px; } .card:nth-child(1) { grid-column: 1 / 4; } .card:nth-child(2) { grid-column: 1 / 4; grid-row: 2; } .card:nth-child(3) { grid-column: 9 / 13; grid-row: 2; } .card:nth-child(4) { grid-column: 4 / 10; } .card:nth-child(5) { grid-column: 10 / 13; } http://codepen.io/rachelandrew/pen/XKaZwa
  16. .card:nth-child(1) { grid-area: side1; } .card:nth-child(2) { grid-area: side2; } .card:nth-child(3) { grid-area: side3; } .card:nth-child(4) { grid-area: middle1; } .card:nth-child(5) { grid-area: side4; }
  17. .cards { display:grid; grid-template-columns: repeat(4, 1fr); grid-gap: 10px; grid-template-areas: "side1 middle1 middle1 side3" "side2 ....... ....... side4"; }
  18. Lots of Grid Examples http://gridbyexample.com
  19. CSS Shapes "CSS Shapes describe geometric shapes for use in CSS. For Level 1, CSS Shapes can be applied to floats. A circle shape on a float will cause inline content to wrap around the circle shape instead of the float’s bounding box." -- https://drafts.csswg.org/css-shapes/
  20. A simple circle .balloon { float: left; width: 429px; shape-outside: circle(50%); } <div class="box"> <img class="balloon" src="round-balloon.png" alt="balloon"> <p>...</p> </div> http://codepen.io/rachelandrew/pen/KrvyQq
  21. Floating generated content to use Shapes .box::before { content: ""; display: block; float: left; width: 429px; height: 409px; shape-outside: circle(50%); } http://codepen.io/rachelandrew/pen/mErqxy
  22. Shapes and clip-path .balloon { float: right; width: 640px; height: 427px; shape-outside: ellipse(33% 50% at 460px); -webkit-clip-path: ellipse(28% 50% at 460px); clip-path: ellipse(28% 50% at 460px); } http://codepen.io/rachelandrew/pen/xOLPLa/
  23. CSS Feature Queries with @supports Like Modernizr but in native CSS. "The ‘@supports’ rule is a conditional group rule whose condition tests whether the user agent supports CSS property:value pairs." -- https://www.w3.org/TR/css3-conditional/#at-supports
  24. Does my browser support display: flex? @supports (display: flex) { .has-flex { display: block; background-color: #0084AD; color: #fff; } }
  25. Does my browser support display: grid? @supports (display: grid) { .has-grid { display: block; background-color: #284C6D; color: #fff; } }
  26. Test more than 1 thing @supports ((display: grid) and (shape-outside: circle())) { .has-grid-shapes { display: block; background-color: #666; color: #fff; } } http://codepen.io/rachelandrew/pen/RRkWKX/
  27. .balloon { border: 1px solid #999; padding: 2px; } @supports ((shape-outside: ellipse()) and ((clip-path: ellipse()) or (-webkit-clip-path:ellipse()))) { .balloon { border: none; padding: 0; float: right; width: 640px; min-width: 640px; height: 427px; shape-outside: ellipse(33% 50% at 460px); -webkit-clip-path: ellipse(28% 50% at 460px); clip-path: ellipse(28% 50% at 460px); } }
  28. Using feature queries » Write the css for older browsers » Inside the feature query reset those properties » Inside the feature query write your new CSS http://codepen.io/rachelandrew/pen/vKJmXR
  29. CSS Custom Properties (CSS Variables!)
  30. CSS Custom Properties "This module introduces a family of custom author-defined properties known collectively as custom properties, which allow an author to assign arbitrary values to a property with an author-chosen name, and the var() function, which allow an author to then use those values in other properties elsewhere in the document." -- https://drafts.csswg.org/css-variables/
  31. :root { --primary: blue; --secondary: orange; } h1 { color: var(--primary); } http://codepen.io/rachelandrew/pen/qNXpEZ
  32. Testing for custom properties :root { --primary: blue; --secondary: orange; } @supports (--primary: blue) { h1 { color: var(--primary); } h2 { color: var(--secondary); } } http://codepen.io/rachelandrew/pen/mErpZA
  33. Getting Involved CSS Specification discussion and issues are on github https://github.com/w3c/csswg-drafts
  34. Raise issues with browsers » Mozilla https://bugzilla.mozilla.org/ » Edge https://developer.microsoft.com/en-us/microsoft-edge/ platform/issues/ » Chrome https://bugs.chromium.org/p/chromium/issues/list
  35. Request features Directly request features where browsers give you the means to do so. Writing blog posts, presentations and demos also helps.
  36. If we don’t ask we don’t get Make some noise for the new shiny!
  37. Thank you! @rachelandrew https://cssgrid.me/melbjs

×
