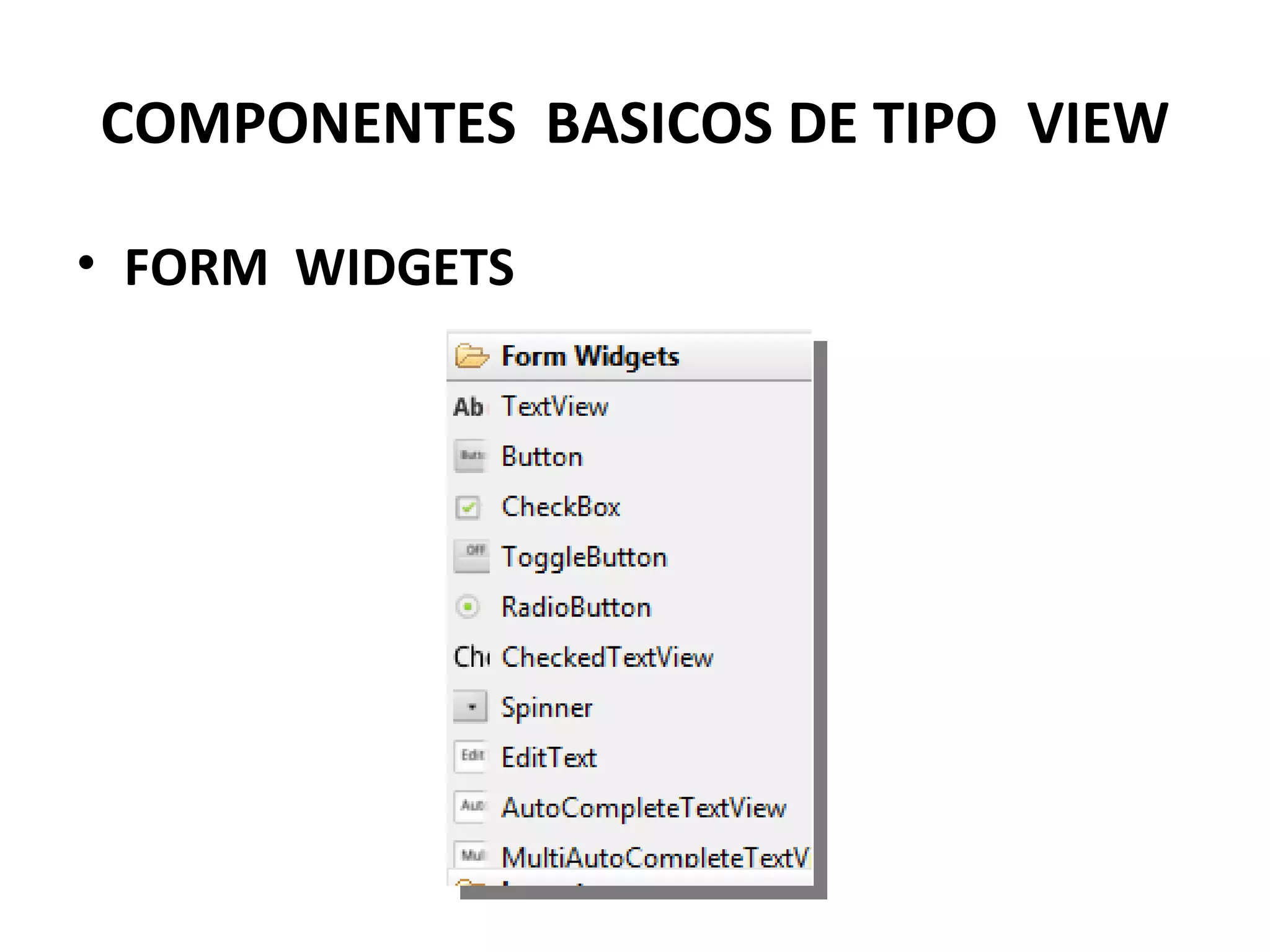

Este documento habla sobre los componentes básicos de tipo view en Android. Explica diferentes tipos de views como form widgets (EditText, TextView, Button, etc), layouts (LinearLayout, RelativeLayout, TableLayout, GridLayout), imágenes y medios. Detalla las propiedades de cada componente y cómo agregarlos y modificarlos en el diseño XML.
Introducción a Swing y a los Layout Managers. Es la séptima de una serie de nueve presentaciones para introducir al mundo de JAVA a alumnos de secundaria.
Introducción a Swing y a los Layout Managers. Es la séptima de una serie de nueve presentaciones para introducir al mundo de JAVA a alumnos de secundaria.
Ponencia en I SEMINARIO SOBRE LA APLICABILIDAD DE LA INTELIGENCIA ARTIFICIAL EN LA EDUCACIÓN SUPERIOR UNIVERSITARIA. 3 de junio de 2024. Facultad de Estudios Sociales y Trabajo, Universidad de Málaga.
Ponencia en I SEMINARIO SOBRE LA APLICABILIDAD DE LA INTELIGENCIA ARTIFICIAL EN LA EDUCACIÓN SUPERIOR UNIVERSITARIA. 3 de junio de 2024. Facultad de Estudios Sociales y Trabajo, Universidad de Málaga.
SEMIOLOGIA DE HEMORRAGIAS DIGESTIVAS.pptxOsiris Urbano
Evaluación de principales hallazgos de la Historia Clínica utiles en la orientación diagnóstica de Hemorragia Digestiva en el abordaje inicial del paciente.
11. • Nota Importante :
• wrap_content : ocupa sólo el espacio necesario
para mostrar tu contenido
• match_parent : ocupa todo el espacio
posible
• fill_parent
12. • Observación :
• Nótese que anteriormente “match_parent"
era conocido como “fill_parent“, luego es muy
común encontrar este valor en lugar del
anterior.
• A efectos prácticos son lo mismo, sin embargo
la evolución de Android favorece este nuevo
nombre.
20. COMPONENTES BASICOS DE TIPO
VIEW (DE FORM WIDGETS)
EditText
Paso 3 : Finalmente aparece así el EditText
:
100 dp
21. COMPONENTES BASICOS DE TIPO
VIEW (DE FORM WIDGETS)
EditText
Si nosotros le colocamos 300dp al ancho del editText.
300 dp
22. COMPONENTES BASICOS DE TIPO
VIEW (DE FORM WIDGETS)
TEXTVIEW
Este es el
TextView
Nombre del
componente
XML Texto o
etiqueta del
textview
Ancho del
componente
Largo del
componente
23. COMPONENTES BASICOS DE TIPO
VIEW (DE FORM WIDGETS)
BUTTON
Nombre del
componente
Texto del
boton
Ancho del
componente
Largo del
componente
24. COMPONENTES BASICOS DE TIPO
VIEW (DE FORM WIDGETS)
RADIOBUTTON
Nombre del
componente
Texto del
radio button
Ancho del
componente
Largo del
componente
25. COMPONENTES BASICOS DE TIPO
VIEW (DE FORM WIDGETS)
CHECKBOX
Nombre del
componente
Texto del
radio button
Largo del
componente
Ancho del
componente
26. COMPONENTES BASICOS DE TIPO
VIEW (DE FORM WIDGETS)
SPINNER
Nombre del
componente
Largo del
componente
Ancho del
componente
27. COMPONENTES BASICOS DE TIPO
VIEW (DE FORM WIDGETS)
PROGRESSBAR
Nombre del
componente
Largo del
componente
Ancho del
componente
28. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
LINEARLAYOUT
Es un contenedor que utiliza el modelo de caja para desplegar
los elementos que están dentro de él. Los widgets y
contenedores secundarios que se declaren dentro de un
elemento <LinearLayout> se alinearán en una columna o en
un fila, uno detrás de otro.
29. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
LINEARLAYOUT
Orientación
del
contenedor
Largo del
contenedor
Ancho del
contenedor
33. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• RelativeLayout
• Su principal característica es
que los widgets que estén
dentro de este contenedor
basarán su posición en relación
con los otros elementos. De
esta forma, podemos definir
que el widget X quede debajo
del widget Y y que éste a su vez
se alinie verticalmente con el
widget Z.
34. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• RelativeLayout
• Cuando se crea un proyecto e n el main.xml existe e
implementado el LinearLayout .
• Este LinearLayout se tiene que quitar para agregarle el
RelativeLayout.
• A continuación vamos a seguir los pasos necesario para
implementar un RelativeLayout y agregar un
componente.
35. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• RelativeLayout
2) Soltar
sobre el
escenario
1)
Seleccionar
y arrastrar
al escenario
36. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• RelativeLayout
3) Aparece el
RelativeLayout
37. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• RelativeLayout
4) Seleccionar y
arrastrar el
Button y
soltarlo sobre el
escenario
38. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• RelativeLayout
5) Soltar el
Button sobre el
escenario
39. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• RelativeLayout
6) Otra vez
Seleccionar y
arrastrar el
Button y
soltarlo sobre el
escenario
40. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• RelativeLayout
7) Soltar el
Button sobre el
escenario
41. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout
Te ayudará a posicionar tus widgets con la ayuda de celdas.
Nosotros controlamos el número de columnas y filas, las
primeras pueden adaptarse al contenido que le queramos
asignar mostrándose más estrechas o más amplias según
sea el caso.
• TableRow
Son un conjunto elementos del TableLayout ,podemos
controlar el número de filas que aparecerán en nuestra
tabla.
42. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
Sobre un proyecto nuevo , se realiza el correspondiente
diseño, cambiando de LinearLayout a TableLayout.
2)
Arrastrar y
soltar
sobre el
escenario
1)
Seleccionar
y arrastrar
al escenario
43. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
3) Aparece el
Layout
correspondiente
sobre el
escenario
44. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
4) Seleccionar
y arrastrar el
TableRow al
escenario
5) Arrastrar y
soltar sobre el
escenario, esta
operación se va
ha repetir cuatro
veces
45. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
6) 4 Filas
generadas 7) Allí se
observa las 4
filas generadas
en el OutLine
46. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
8)
4Seleccionar y
arrastrar el
TextView sobre
el primer 9) Arrastrar y
TableRow soltar sobre el
primer TableRow
47. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
10) El
TextView que
se ha agregado
aparece en el
código XML
48. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
11)
Seleccionar y
arrastrar el 12) Arrastrar y
Plain Text soltar sobre el
sobre el primer primer TableRow
TableRow
49. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
13) El campo
de texto esta
finalmente
insertado sobre
el primer
TableRow
50. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
14) El campo de texto
EditText ( plain text ) se
encuentra insertado en el
XML, ahora se tiene que
modificar algunas
propiedades
51. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
15) Aparece
el campo de
texto
debidamente
perfilado
52. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
16) Seleccionar y
arrastrar el
TextView sobre el
segundo TableRow
17) Arrastrar y
soltar sobre el
segundo
TableRow
53. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
18) El
TextView que
se ha agregado
aparece en el
código XML
54. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
19)
Seleccionar y
arrastrar el
Plain Text
sobre el
20) Arrastrar y
segundo soltar sobre el
TableRow segundo
TableRow
55. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayou y TableRow
21) El
EditText que se
ha agregado
aparece en el
código XML
14) El campo de texto
EditText ( plain text ) se
encuentra insertado en el
XML, ahora se tiene que
modificar algunas
propiedades
56. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
22) Diseño
generado hasta el
momento
57. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
23)
Seleccionar y
arrastrar el
TextView sobre
el tercer
TableRow
24) Arrastrar y
soltar sobre el
tercer TableRow
58. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
25) El TextView ya
se encuentra dentro del
TableRows y se le borra
el contenido de la
propiedad Text
59. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
26)
Seleccionar y
arrastrar el
Button sobre el 27) Arrastrar y
Tercer soltar sobre el
TableRow tercer TableRow
60. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
28) El Button se logro
insertar dentro del
TableRow
61. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
29)
Seleccionar y
arrastrar el
TextView sobre
el cuarto
TableRow
30) Arrastrar y
soltar sobre el
cuarto TableRow
62. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
31) El TextView se
ha agregado en el
código XML, además
se tiene que modificar
sus propiedades
32) Se le agrego
estas propiedades
63. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
33) Diseño
generado hasta el
momento
64. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
34) Agregando
color de fondo al
TableLayout
65. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• TableLayout y TableRow
35) Diseño final
generado
76. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• GridLayout
) Seleccionar y
arrastrar el
TextView sobre
el GridLayout ) Arrastrar y
soltar sobre el
GridLayout
79. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• GridLayout
) Nuevamente
Seleccionar y
arrastrar el
TextView sobre ) Arrastrar y
el GridLayout soltar sobre el
GridLayout
82. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• GridLayout
) Nuevamente
Seleccionar y
arrastrar el
TextView sobre
el GridLayout
) Arrastrar y
soltar sobre el
GridLayout
85. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• GridLayout
) Nuevamente
Seleccionar y
arrastrar el
TextView sobre
el GridLayout ) Arrastrar y
soltar sobre el
GridLayout
100. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• GridLayout
Este proceso se repite hasta que se ha logrado obtener
el siguiente diseño:
101. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• FrameLayout
Este layout consiste en un marco que ocupa toda la
pantalla, y donde los controles se dispondrán a partir de la
esquina superior izquierda, por lo que es probable que haya
elementos que se queden ocultos detrás de otros.
102. COMPONENTES BASICOS DE TIPO
VIEW ( LAYOUTS)
• FrameLayout
2) Arrastrar y
soltar el
1)Seleccionar y FrameLayout
sobre el
arrastrar el escenario
FrameLayout
sobre el
escenario
