Otras perspectivas2

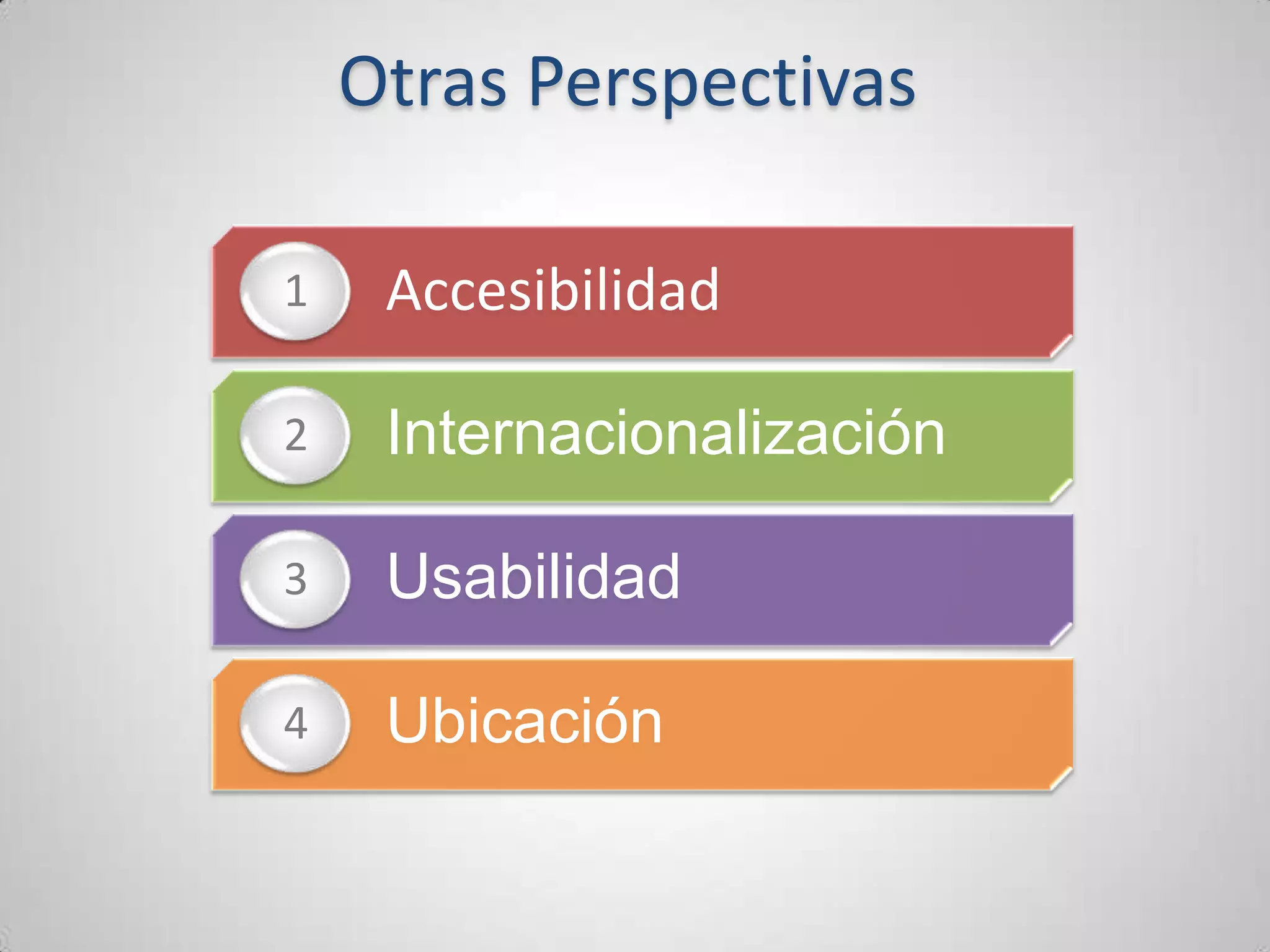

- 1. Otras Perspectivas •1 Accesibilidad •2 Internacionalización •3 Usabilidad •4 Ubicación

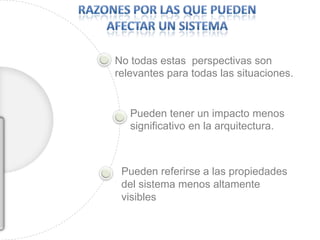

- 2. No todas estasperspectivas son relevantes para todas las situaciones. Pueden tener un impacto menos significativo en la arquitectura. Pueden referirse a las propiedades del sistema menos altamente visibles

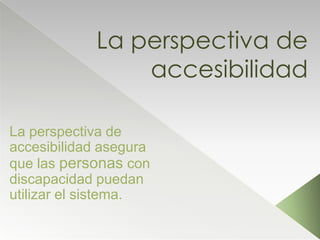

- 3. La perspectiva de accesibilidad La perspectiva de accesibilidad asegura que las personas con discapacidad puedan utilizar el sistema.

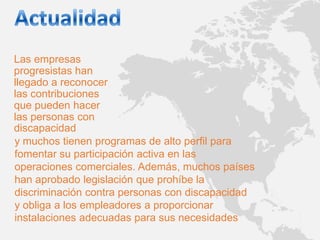

- 4. Las empresas progresistas han llegadoa reconocer las contribuciones que pueden hacer las personas con discapacidad y muchos tienen programas de alto perfil para fomentar su participación activa en las operaciones comerciales. Además, muchos países han aprobado legislación que prohíbe la discriminación contra personas con discapacidad y obliga a los empleadores a proporcionar instalaciones adecuadas para sus necesidades

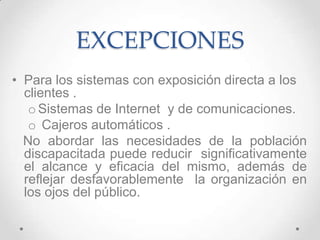

- 6. EXCEPCIONES • Para lossistemas con exposición directa a los clientes . o Sistemas de Internet y de comunicaciones. o Cajeros automáticos . No abordar las necesidades de la población discapacitada puede reducir significativamente el alcance y eficacia del mismo, además de reflejar desfavorablemente la organización en los ojos del público.

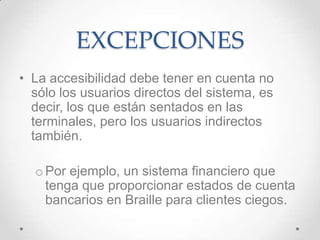

- 7. EXCEPCIONES • La accesibilidaddebe tener en cuenta no sólo los usuarios directos del sistema, es decir, los que están sentados en las terminales, pero los usuarios indirectos también. o Por ejemplo, un sistema financiero que tenga que proporcionar estados de cuenta bancarios en Braille para clientes ciegos.

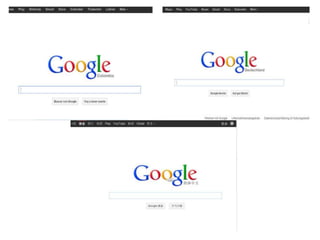

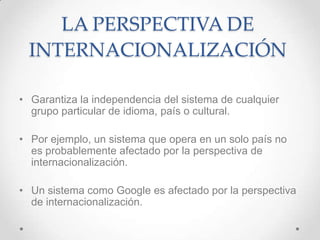

- 9. LA PERSPECTIVA DE INTERNACIONALIZACIÓN • Garantiza la independencia del sistema de cualquier grupo particular de idioma, país o cultural. • Por ejemplo, un sistema que opera en un solo país no es probablemente afectado por la perspectiva de internacionalización. • Un sistema como Google es afectado por la perspectiva de internacionalización.

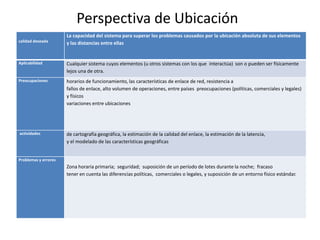

- 11. Perspectiva de Ubicación La capacidad del sistema para superar los problemas causados por la ubicación absoluta de sus elementos calidad deseada y las distancias entre ellas Aplicabilidad Cualquier sistema cuyos elementos (u otros sistemas con los que interactúa) son o pueden ser físicamente lejos una de otra. Preocupaciones horarios de funcionamiento, las características de enlace de red, resistencia a fallos de enlace, alto volumen de operaciones, entre países preocupaciones (políticas, comerciales y legales) y físicos variaciones entre ubicaciones actividades de cartografía geográfica, la estimación de la calidad del enlace, la estimación de la latencia, y el modelado de las características geográficas Problemas y errores Zona horaria primaria; seguridad; suposición de un período de lotes durante la noche; fracaso tener en cuenta las diferencias políticas, comerciales o legales, y suposición de un entorno físico estándar.

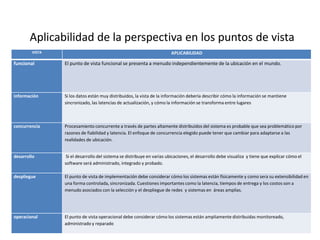

- 12. Aplicabilidad de laperspectiva en los puntos de vista VISTA APLICABILIDAD funcional El punto de vista funcional se presenta a menudo independientemente de la ubicación en el mundo. información Si los datos están muy distribuidos, la vista de la información debería describir cómo la información se mantiene sincronizado, las latencias de actualización, y cómo la información se transforma entre lugares concurrencia Procesamiento concurrente a través de partes altamente distribuidos del sistema es probable que sea problemático por razones de fiabilidad y latencia. El enfoque de concurrencia elegido puede tener que cambiar para adaptarse a las realidades de ubicación. desarrollo Si el desarrollo del sistema se distribuye en varias ubicaciones, el desarrollo debe visualiza y tiene que explicar cómo el software será administrado, integrado y probado. despliegue El punto de vista de implementación debe considerar cómo los sistemas están físicamente y como sera su extensibilidad en una forma controlada, sincronizada. Cuestiones importantes como la latencia, tiempos de entrega y los costos son a menudo asociados con la selección y el despliegue de redes y sistemas en áreas amplias. operacional El punto de vista operacional debe considerar cómo los sistemas están ampliamente distribuidas monitoreado, administrado y reparado

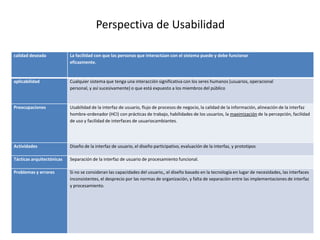

- 13. Perspectiva de Usabilidad calidaddeseada La facilidad con que las personas que interactúan con el sistema puede y debe funcionar eficazmente. aplicabilidad Cualquier sistema que tenga una interacción significativa con los seres humanos (usuarios, operacional personal, y así sucesivamente) o que está expuesto a los miembros del público Preocupaciones Usabilidad de la interfaz de usuario, flujo de procesos de negocio, la calidad de la información, alineación de la interfaz hombre-ordenador (HCI) con prácticas de trabajo, habilidades de los usuarios, la maximización de la percepción, facilidad de uso y facilidad de interfaces de usuariocambiantes. Actividades Diseño de la interfaz de usuario, el diseño participativo, evaluación de la interfaz, y prototipos Tácticas arquitectónicas Separación de la interfaz de usuario de procesamiento funcional. Problemas y errores Si no se consideran las capacidades del usuario,, el diseño basado en la tecnología en lugar de necesidades, las interfaces inconsistentes, el desprecio por las normas de organización, y falta de separación entre las implementaciones de interfaz y procesamiento.

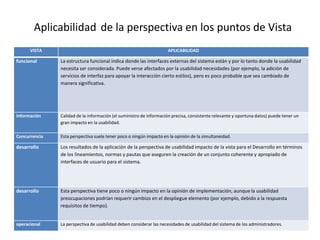

- 14. Aplicabilidad de laperspectiva en los puntos de Vista VISTA APLICABILIDAD funcional La estructura funcional indica donde las interfaces externas del sistema están y por lo tanto donde la usabilidad necesita ser considerada. Puede verse afectados por la usabilidad necesidades (por ejemplo, la adición de servicios de interfaz para apoyar la interacción cierto estilos), pero es poco probable que sea cambiado de manera significativa. información Calidad de la información (el suministro de información precisa, consistente relevante y oportuna datos) puede tener un gran impacto en la usabilidad. Concurrencia Esta perspectiva suele tener poco o ningún impacto en la opinión de la simultaneidad. desarrollo Los resultados de la aplicación de la perspectiva de usabilidad impacto de la vista para el Desarrollo en términos de los lineamientos, normas y pautas que aseguren la creación de un conjunto coherente y apropiado de interfaces de usuario para el sistema. desarrollo Esta perspectiva tiene poco o ningún impacto en la opinión de implementación, aunque la usabilidad preocupaciones podrían requerir cambios en el despliegue elemento (por ejemplo, debido a la respuesta requisitos de tiempo). operacional La perspectiva de usabilidad deben considerar las necesidades de usabilidad del sistema de los administradores.

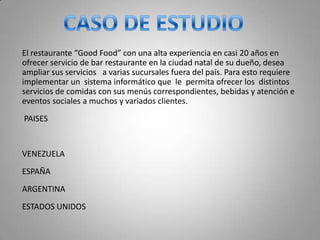

- 15. El restaurante “GoodFood” con una alta experiencia en casi 20 años en ofrecer servicio de bar restaurante en la ciudad natal de su dueño, desea ampliar sus servicios a varias sucursales fuera del país. Para esto requiere implementar un sistema informático que le permita ofrecer los distintos servicios de comidas con sus menús correspondientes, bebidas y atención e eventos sociales a muchos y variados clientes. PAISES VENEZUELA ESPAÑA ARGENTINA ESTADOS UNIDOS

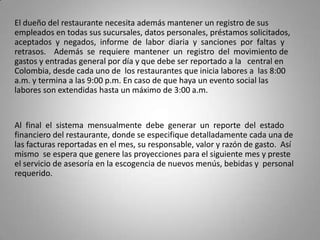

- 16. El dueño delrestaurante necesita además mantener un registro de sus empleados en todas sus sucursales, datos personales, préstamos solicitados, aceptados y negados, informe de labor diaria y sanciones por faltas y retrasos. Además se requiere mantener un registro del movimiento de gastos y entradas general por día y que debe ser reportado a la central en Colombia, desde cada uno de los restaurantes que inicia labores a las 8:00 a.m. y termina a las 9:00 p.m. En caso de que haya un evento social las labores son extendidas hasta un máximo de 3:00 a.m. Al final el sistema mensualmente debe generar un reporte del estado financiero del restaurante, donde se especifique detalladamente cada una de las facturas reportadas en el mes, su responsable, valor y razón de gasto. Así mismo se espera que genere las proyecciones para el siguiente mes y preste el servicio de asesoría en la escogencia de nuevos menús, bebidas y personal requerido.
- 17. Se debe teneren cuenta que en el departamento de cocina existe personal sordo para lo cual el sistema debe implementar la manera de comunicación para que los cocineros reciban el pedido para llevar a cabo su preparacion. Alcanzar el primer lugar en el mercado como el mejor restaurante de cocina, con un excelente servicio y calidad dentro de nuestros productos, para lograr la consolidación en la preferencia de nuestros clientes. Llegar a ser el mejor restaurante de a nivel nacional e internacional, constituirnos como el más exitoso, y convertirnos también como una muy atractiva fuente de trabajo. Desarrollar una estructura integral en nuestro equipo de colaboradores, actitud de servicio, convivencia y armonía en un ambiente de profesionalismo, honestidad y entusiasmo, en el trabajo. Que el cliente disfrute de su estancia con sus familiares y amigos sin perder el espíritu que identifica el país en el que se encuentra. Así como también que en cada una de sus visitas, se lleven una excelente imagen de la buena mesa y del buen servicio que en este restaurante.

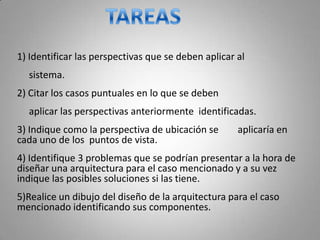

- 18. 1) Identificar lasperspectivas que se deben aplicar al sistema. 2) Citar los casos puntuales en lo que se deben aplicar las perspectivas anteriormente identificadas. 3) Indique como la perspectiva de ubicación se aplicaría en cada uno de los puntos de vista. 4) Identifique 3 problemas que se podrían presentar a la hora de diseñar una arquitectura para el caso mencionado y a su vez indique las posibles soluciones si las tiene. 5)Realice un dibujo del diseño de la arquitectura para el caso mencionado identificando sus componentes.
