Óptica de la visión según Guyton y Ganong, explicación de la visión humana mediante los principios de la óptica.
Un libro sin recetas, para la maestra y el maestro Fase 3.pdfsandradianelly
Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestra y el maestro Fase 3Un libro sin recetas, para la maestr
7. ¡LAS LÍNEAS ROJAS SIEMPRE EESSTTAANN PPAARRAALLEELLAASS EENNTTRREE EELLLLAASS!!
8. MMIIRRAA SSOOLLOO LLAA CCRRUUZZ CCEENNTTRRAALL......
¡¡DDeennttrroo ddee uunn mmoommeennttoo eell ccíírrccuulloo qquuee ssee mmuueevvee ssee ppoonnddrráá ddee ccoolloorr vveerrddee!!
Si continuas mirando la
cruz fijamente, en un
poco rato desapareceran
los círculos de color lila y
solo se verá el círculo
verde que se traslada por
la pantalla...
(Que en realidad es un
circulo de color lila)
16. EEll GGLLOOBBOO OOCCUULLAARR
Principal estructura
del ojo humano
ubicado en la
cavidad ósea.
Es similar a una
cámara fotográfica
con sistema de
lentes.
17. • Histológicamente se
puede describir en 3
capas, que desde el
exterior al interior
son:
• 1.- Esclerocórnea
2.- Coroides
3.- Retina
19. CCoorrooiiddeess
Capa de tejido
conectivo laxo, rica
en vasos sanguíneos,
la cual nutre al
globo ocular.
Es pigmentada, lo
que ayuda a
absorber el exceso
de luz y oscurece al
interior del ojo.

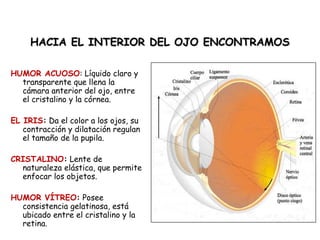

20. HACIA EELL IINNTTEERRIIOORR DDEELL OOJJOO EENNCCOONNTTRRAAMMOOSS
HUMOR ACUOSO: Líquido claro y
transparente que llena la
cámara anterior del ojo, entre
el cristalino y la córnea.
EL IRIS: Da el color a los ojos, su
contracción y dilatación regulan
el tamaño de la pupila.
CRISTALINO: Lente de
naturaleza elástica, que permite
enfocar los objetos.
HUMOR VÍTREO: Posee
consistencia gelatinosa, está
ubicado entre el cristalino y la
retina.
21. IIRRIISS
Presenta fibras musculares lisas, Radiales y
Circulares, Cuya contracción y relajación
regulan el tamaño de la Pupila.
23. CCRRIISSTTAALLIINNOO
Sostenido por los ligamentos
suspensorios.
Es de naturaleza elástica.
Rodeado por Músculo Ciliar y
ligamentos suspensorios.
Gracias a éstos, el cristalino tiene la
facultad de variar su curvatura.
Este Fenómeno se llama acomodación.
25. AACCOOMMOODDAACCIIÓÓNN DDEELL
CCRRIISSTTAALLIINNOO
Permite la visión nítida a
cualquier distancia que se
encuentre el objeto.
La visión mas clara se obtiene
cuando la imagen se forma
sobre la retina.
Visión Lejana: El músculo
ciliar se relaja y el ligamento
ciliar, se encuentra tenso.
Visión Cercana: El músculo ciliar
se contrae y el ligamento ciliar,
se encuentra relajado.
“Aunque la acomodación es un
fenómeno bastante eficiente,
tiene sus límites.”
26. RREETTIINNAA
Capa mas interna, esta constituida
por 10 capas celulares. Receptores
visuales, Conos y Bastones, además
de 4 tipos de neuronas.
Fóvea Central (detalles finos).
Punto Ciego (no hay conos ni
bastones).
27.
28. F Ó V E A C E N T R A L
DDeepprreessiióónn ddee llaa rreettiinnaa,, ccuuyyaa ffuunncciióónn eess
ppeerrcciibbiirr llooss ccoolloorreess yy llooss ddeettaalllleess ffiinnooss ddee
llaa iimmáággeenneess ((vviissiióónn aagguuddaa)).. PPoorr eessttee
mmoottiivvoo llooss ccoonnooss ssoonn mmááss aabbuunnddaanntteess eenn
eessttee sseeccttoorr,, nnoo aassíí llooss bbaassttoonneess..
30. • BBAASSTTOONNEESS
• Responden a pequeñas
cantidades de luz, de ahí
que los bastones se
especialicen en la visión
nocturna.
CCOONNOOSS
Presentan 3 clases de
pigmentos, para los 3
colores básicos.
Rojo, eritropsina
Azul, cianopsina
Verde , cloropsina
BASTÓN CONO

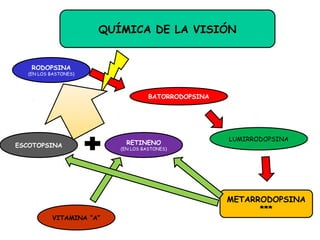

31. QUÍMICA DE LA VISIÓN
RODOPSINA
(EN LOS BASTONES)
BATORRODOPSINA
LUMIRRODOPSINA
METARRODOPSINA
***
ESCOTOPSINA RETINENO
(EN LOS BASTONES)
VITAMINA “A”
32. FISIOLOGÍA DE LA VISIÓN
Después de atravesar los medios transparentes
• Córnea
• Humor acuoso
• Cristalino
• Humor Vítreo
La luz debiera incidir sobre la retina. Pero ocurre el
Fenómeno de la Refracción.
33. • Esto se debe a la
refracción de la luz que
atraviesa los distintos
medios. Después que la
imagen llegó al fondo de
la retina, los impulsos
nerviosos, generados por
los fotorreceptores son
conducidos al cerebro
(lóbulo occipital), quién
la reinvierte,
determinando así que se
vea en posición real.
Entonces a la retina
la imagen llega de
manera: Real, más
pequeña e Invertida

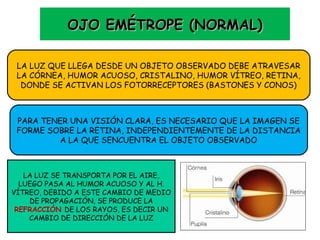

38. OOJJOO EEMMÉÉTTRROOPPEE ((NNOORRMMAALL))
LA LUZ QUE LLEGA DESDE UN OBJETO OBSERVADO DEBE ATRAVESAR
LA CÓRNEA, HUMOR ACUOSO, CRISTALINO, HUMOR VÍTREO, RETINA,
DONDE SE ACTIVAN LOS FOTORRECEPTORES (BASTONES Y CONOS)
PARA TENER UNA VISIÓN CLARA, ES NECESARIO QUE LA IMAGEN SE
FORME SOBRE LA RETINA, INDEPENDIENTEMENTE DE LA DISTANCIA
A LA QUE SENCUENTRA EL OBJETO OBSERVADO
LA LUZ SE TRANSPORTA POR EL AIRE,
LUEGO PASA AL HUMOR ACUOSO Y AL H.
VÍTREO, DEBIDO A ESTE CAMBIO DE MEDIO
DE PROPAGACIÓN, SE PRODUCE LA
REFRACCIÓN DE LOS RAYOS, ES DECIR UN
CAMBIO DE DIRECCIÓN DE LA LUZ
39. EENNFFEERRMMEEDDAADDEESS DDEE LLAA VVIISSIIÓÓNN
PPRREESSBBIICCIIAA
ES UNA ENFERMEDAD
DEGENERATIVA, SE PRODUCE
CON EL PASO DE LOS AÑOS.
CARACTERIZADA PORQUE SE
REDUCE LA CAPACIDAD DE
ADAPTACIÓN DEL
CRISTALINO, QUE PIERDE
FLEXIBILIDAD
40. EENNFFEERRMMEEDDAADDEESS DDEE LLAA VVIISSIIÓÓNN
MIOPÍA
LAS PERSONAS POSEEN GLOBO OCULAR
LARGO, ENFOCAN LOS OBJETOS
DISTANTES DE LA RETINA (ANTES).
ESTAS PERSONAS OBSERVAN CON
NITIDEZ OBJETOS CERCANOS, PERO VEN
DIFUSOS LOS QUE SE ENCUENTRAN
LEJOS.
SE CORRIGE CON LENTES BICONCAVOS

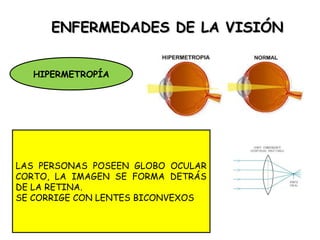

41. EENNFFEERRMMEEDDAADDEESS DDEE LLAA VVIISSIIÓÓNN
HIPERMETROPÍA
LAS PERSONAS POSEEN GLOBO OCULAR
CORTO, LA IMAGEN SE FORMA DETRÁS
DE LA RETINA.
SE CORRIGE CON LENTES BICONVEXOS

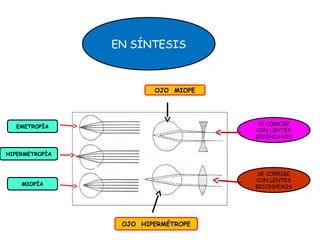

42. EN SÍNTESIS
EMETROPÍA
HIPERMETROPÍA
MIOPÍA
OJO MIOPE
OJO HIPERMÉTROPE
SE CORRIGE
CON LENTES
BICÓNCAVOS
SE CORRIGE
CON LENTES
BICONVEXOS
43. EENNFFEERRMMEEDDAADDEESS DDEE LLAA VVIISSIIÓÓNN
ASTIGMATISMO
SE CARACTERIZA PORQUE LA CÓRNEA
ESTA ANORMALMENTE CURVADA, POR LO
QUE LA IMAGEN SE PRESENTA
DESENFOCADA, GENERALMENTE SE
MANIFIESTA JUNTO A LA MIOPÍA O
HIPERMETROPÍA.
SE CORRIGE CON LENTES CILÍNDRICOS.
44. EENNFFEERRMMEEDDAADDEESS DDEE LLAA VVIISSIIÓÓNN
DALTONISMO
ES UNA ANOMALÍA DE LA VISIÓN DE
LOS COLORES, SE TRATA DE UNA
ALTERACIÓN GENÉTICA RECESIVA,
LIGADA AL CROMOSOMA X. EN ESTA
ENFERMEDAD SE PIERDE UNO DE LOS
TRES TIPOS DE CONOS, ALTERANDO LA
PERCEPCIÓN CROMÁTICA (DEL COLOR)
45. EENNFFEERRMMEEDDAADDEESS DDEE LLAA VVIISSIIÓÓNN
CATARATAS
SE PRODUCE POR LA OPACIDAD TOTAL O
PARCIAL DEL CRISTALINO,
OCASIONANDO UNA VISIÓN BORROSA,
SE CORRIGE CON LENTES ÓPTICOS, PERO
LA SOLUCIÓN DEFINITIVA SE LOGRA
CON UNA CIRUGÍA QUE REEMPLACE EL
CRISTALINO POR UN LENTE
INTRAOCULAR
46. MMIIRRAA BBIIEENN EELL DDIIBBUUJJOO......
¿QQUUÉÉ VVEESS??
Las investigaciones han
demostrado que los niños pequeños
no pueden diferenciar ésta
pareja, ya que ellos en su
memoria aun no tienen ésta
informacion asociada a nada.
¡¡¡Los niños pequeños solo ven 9
delfines!!
Moraleja
Si en el transcurso de 3 segundos
no encuentras los delfines, te
daras cuenta que clase de
asociaciones tiene tu cerebro...
47. IINNSSTTRRUUCCCCIIOONNEESS:
1. Mira por 40 segundos los 4 puntos en el centro del dibujo
2. Luego mira hacia otro lado y parpadea seguido sin parar
