Metodos de Diseño
Este documento presenta varios métodos y técnicas de diseño de permacultura. Define el diseño como un proceso cultural para crear sistemas que funcionen de manera beneficiosa. Explica conceptos como análisis de zonas, sectores, sucesión y evolución para diseñar sistemas que imiten a la naturaleza y requieran poco trabajo. Resalta la importancia de observar el sitio, planificar la evolución del diseño en etapas y establecer sistemas críticos como agua y refugio desde el
Metodos de Diseño
- 1. Métodos y Técnicasde Diseño
- 2. Definir Diseño. DefinirDiseño de Permacultura. Definir Diseño Funcional. Comprender los principios de Auto-Regulación. Conocer un amplio rango de métodos de diseño. Saber lo que es: Análisis de Zonas & Sectores. Objetivos de Aprendizaje
- 3. Una conversación.... ¿Quées diseño?
- 4. Practical Conversations. Knowledge spocially constructed. Culturally transformative. World-shaping. Creates strategic conviction. A Cultural Process
- 5. Design is theway we co-create the world. A creation story in which everyone participates. Everyone is a designer. We do it every day. Where do you drive to? A Cultural Process
- 6. Diseño es laBisagra Cultura Paisaje Naturaleza Diseño Patron
- 7. Todo diseño escompuesto por: Conceptos, materiales, técnicas & estrategias Tal como en nuestros cuerpos, las partes funcionan como una totalidad, con un propósito unificado. Tratamos de integrar los componentes para lograr una totalidad El enfoque no esta en los componentes, Si no que en como se relacionan Como funcionan juntos Elementos en un Diseño Total
- 8. Elements Structure Function Elementos: las piezas del puzzle. Forma de Estructura: como encajan esas piezas. Función: que hace cada pieza & las interacciones entre cada una Componentes de un Sistema Natural
- 9. EL DISEÑO “Un Ensamblaje Beneficioso de componentes en sus relaciones propias”
- 10. Un sistema parareunir componentes conceptuales, materiales y estratégicos en un patrón que funciona para beneficiar la vida en todas sus formas Definir Diseño de Permacultura

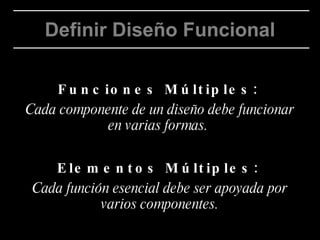

- 11. Funciones Múltiples: Cada componente de un diseño debe funcionar en varias formas. Elementos Múltiples: Cada función esencial debe ser apoyada por varios componentes. Definir Diseño Funcional
- 12.
- 13. ¿Como decidimos dondeponer las cosas? Haz una lista de características para encontrar conexiones beneficiosas entre ellas. Las respuestas dan ubicación relativa . Principio de Auto-Regulación: El propósito de diseño auto-regulatorio – ubicar elementos para que cumplan las necesidades , & acepte los productos de otros . Análisis
- 14. Gallina: Productos &Comportamientos
- 15. Hay que conectarla gallina con otros componentes. Criterios: ubicación permite que la gallina funcione naturalmente en una forma que beneficia la totalidad. Ubícalo en el Lugar Correcto
- 16. Un invento humano.En la naturaleza no existen los desechos. Una sobre-abundancia. e.g. Agua... O Plata. Un Rendimiento que no es usado por otro sistema. Resultado es caos o desorden. Necesitamos trabajar... Polución
- 17. Un ingresode energía que no es cumplida por el sistema. E.g. limpiar el gallinero y mover el guano al compostaje... Después movemos el compostaje al jardín = TRABAJO ¿Que ocurriría en la naturaleza? Ambos son resultados innecesarios de un sistema incompleto. Trabajo
- 18.
- 19. Una forma analíticaNo relacionada con el mismo sitio Trae ideas, ¿Pero son factibles? El método trabaja sin experiencia en terreno Es una debilidad y una fuerza Análisis no requiere conocimiento anterior E incluso menos investigaciones en terreno Análisis
- 20.
- 21. Comienza en elsitio! No hay nada mejor que la observación … es la herramienta básica de residentes de muchos años. Un buen diseñador busca aprender de la naturaleza, Como diseñar según el ejemplo natural. Deducir de la Naturaleza
- 22.
- 23.
- 24. Como observar: Como niño: Porque será que... En forma Temática: agua, vegetación, climas. Instrumental: medir. Experiencial: usar los sentidos como un instrumento. Muchas estrategias emergen de observaciones simples. Deducir de la Naturaleza
- 25.
- 26. Estructura: Imitar proteccionescontra el viento naturales, Microclimas. Proceso: es lo mas importante para sistemas auto-generativos. Se usa en diseño para reducir trabajo & energías que ingresan. Estamos rodeados de lecciones. Paisaje: presenta oportunidades. Encuentra un uso para los nichos. Pueden ser creados. Observaciones en Diseño
- 27.
- 28.
- 29. Bosque Alimenticio de10 Años
- 30.
- 31.

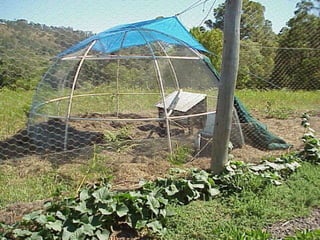

- 32.

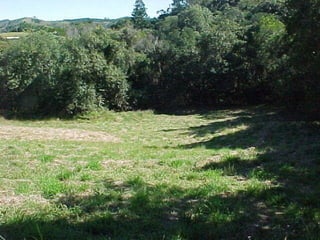

- 33.
- 34.
- 35.
- 36.
- 37.
- 38. Educación tradicional dediseño. Caro y consume mucho tiempo. Puede conducir a ubicaciones inevitables en terreno. Hace que cualquier diseño sea mas fácil y mas visual. Pero omite detalles, y nunca revela proceso dinámico. El mapa indica buenas opciones. Que se pueden chequear en terreno . Sobreponer Mapas & Información

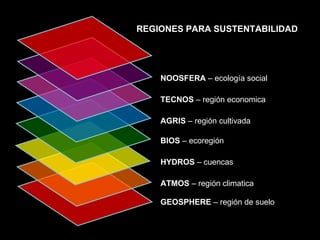

- 39. GEOSPHERE –región de suelo HYDROS – cuencas BIOS – ecoregión AGRIS – región cultivada TECNOS – región economica ATMOS – región climatica NOOSFERA – ecología social REGIONES PARA SUSTENTABILIDAD
- 40. Principalmente conocimiento local,y poco de conocimiento de expertos Principalmente conocimiento de expertos y un poco de conocimiento local
- 41.

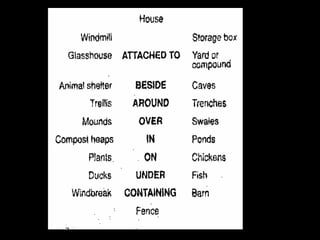

- 42. Otro método analíticoValor por análisis de flujos de energía, y Creatividad libre de prejuicios. Las verdaderas soluciones se esconden, libres de conocimiento y valores. Agrupación al Azar
- 43.
- 44. Para diseñar áreasde trabajo como la cocina. Mapa de flujo. Se pueden marcar diseños en el suelo y caminar. Involucra a un trabajador con experiencia, investiga diseños previos. Diagramas de Flujos
- 45.
- 46.
- 47. Energía primaria conservandoel patrón para el sitio. Combinar para crear una red de ubicaciones . Ubicación de componentes relativo a: Energías en el lugar – zonas de uso, Energías fluyen a través del lugar – sectores de intervención. Principio de Ubicación: si empezamos bien lo demás seguirá. Análisis de Zonas & Sectores
- 48. Una serie decírculos concéntricos Básico para conservación de energía y recursos, Desde uso intensivo human a areas silvestres . Ningún sitio real acepta el modelo. Siempre modificado por topografía, acceso, etc. Análisis de Zona
- 49.
- 50. Ubicación de elementosdecidido por visitas. Limón 112 veces. Manzana 15 veces. Y por ende tenemos zonas de frecuencia. Mientras mas visitas mas cerca. Los elementos se ubican a si mismo. La regla dorada: desarrolla lo mas cerca primero, después expande. Análisis de Zona
- 51. Zona 0 CasaZona 1 Jardín Zona 2 Aves & Cerdos Zona 3 Huerto & Cabras Zona 4 Ganado & Bosque Zona 5 Corredores de Vida Silvestre
- 52. Las energías silvestresvienen de afuera. Especifico al sitio, direcciones del compás. Regulamos estos factores para sacarles ventaja. Algunos factores los invitamos, algunos excluimos. Cubrir, deflectar, colectar. Zona 0 los puntos de energía a través . Análisis de Sectores
- 53. Análisis de SectorSectores de Sol Verano Invierno Sectores de Viento Por Temporada: frió, calido, húmedo Ejes de Vista Flujo de Escarcha Acceso Flujo de Vertiente
- 54.
- 55.
- 56.

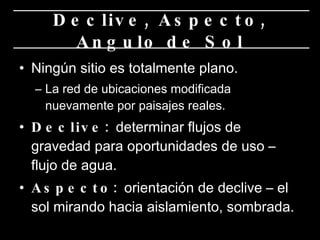

- 57. Ningún sitio estotalmente plano. La red de ubicaciones modificada nuevamente por paisajes reales. Declive: determinar flujos de gravedad para oportunidades de uso – flujo de agua. Aspecto: orientación de declive – el sol mirando hacia aislamiento, sombrada. Declive, Aspecto, Angulo de Sol
- 58. Angulo de Sol: arco del sol. Sombra de verano, sol de invierno: aleros y altura de alfeizares. Prioridades : Encuentra el Aspecto Ubica el almacenamiento de agua. Trata de poner una represa alta Toma en cuenta la gravedad. Toma en cuenta el movimiento de aire Toma en cuenta el acceso. Declive, Aspecto, Angulo de Sol
- 59. Declive, Aspecto, Angulode Sol
- 60.

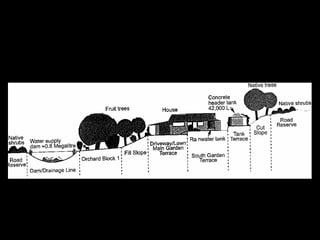

- 61.
- 62.
- 63.
- 64. Pensamiento Estratégico ...planeandopara el futuro . Sucesión y Evolución
- 65. Bosque maduro sereestablece Pioneros: preparan el sitio E.g. pastos, yerbas, etc Fijar nitrógeno Dan refugio
- 66. Los sistemas seestablecen en paisajes perturbados. Pioneros son los primeros en llegar. Estabilizan flujo de agua, dan refugio, mulch, mejoran el suelo para cosechas de largo plazo. Planificación para sucesión da rendimientos de corto, mediano y largo plazo. A diferencia de la naturaleza podemos poner los elementos de sucesión en una plantación. Sucesión & Evolución
- 67. Evolución en unSistema Diseñado A. Establish: An area fenced & complex of species planted & protected. Ponds established. Small livestock added some annuals harvested. B. System evolves: to semi hardy stage. Geese, fish & shellfish introduced & some aquatic plants. C. Un sistema evolucionado: da leña, forraje, productos animales & acuáticos. Ganado mas grande se puede agregar cada temporada. Sistema crea su propio mulch & fertilizante. Sistema maduro requiere administración y no TRABAJO, con una variedad de cosechas (incluyendo información).
- 68. Contemplación Máxima CagadasMínimas Establecer & Mantener un Sistema
- 69. Todo diseño esun ensamblaje de componentes...primero los ubica y saca los costos! Recolectar semillas, rebuscar, cortar plantitas etc. Mirar al sitio para recursos (greda, rocas, malezas, insectos). Labor, aptitud, tiempo y recursos intercambiables – haz intercambio. Desvíos impulsivos son caros; planifica totalmente el sitio y desarrollo. Planning Critical
- 70. As we drawplans, take evolution in stages. Easily achieved. Completed one at a time. Decide priorities and place critical systems; needs early Access, water, shelter, nursery, energy Success measured on how design accepted and implemented. We can design ruinous systems. Recommend what you have found possible. Sucesión & Evolución
- 71. La prioridad sonlas Zonas 1 & 2 – ahorra mas gastos. Diseñar completamente en papel. Establece prioridades basados en la realidad. Poner sistemas críticos primeros. Desarrollar el núcleo completamente, expande los éxitos. Locate and trade for components. Sucesión & Evolución
- 72.
