Presentacion Plc Sep 2009(2)
1. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. POWER LINE COMMUNICATIONS (PLC) Redes de Telecomunicaciones
2.
3. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. Conectividad del PLC con otras Tecnologías de Telecom. PLC ROUTER MICROONDAS CELULAR RADIO INALAMBRICA SATELITAL xDSL F O Línea de Poder (220, 110 V) PLC Media Tensión BAJA TENSIÓN 110 - 220 V. DETECTORES DE HUMO ALARMAS VIDEO VIDEO MONITOREO CONTROL DE ACCESO ALARMAS REDES INALAMBRICAS DATOS (INTERNET) VOZ IP IP TV LECTURA DE MEDIDORES

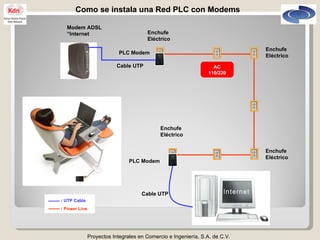

4. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. Modem ADSL “ Internet Enchufe Eléctrico Enchufe Eléctrico Enchufe Eléctrico Enchufe Eléctrico AC 110/220 PLC Modem PLC Modem Cable UTP Internet Cable UTP Como se instala una Red PLC con Modems : UTP Cable : Power Line

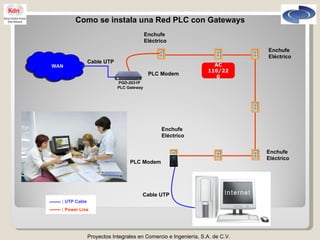

5. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. Como se instala una Red PLC con Gateways Enchufe Eléctrico Enchufe Eléctrico Enchufe Eléctrico Enchufe Eléctrico AC 110/220 PLC Modem PLC Modem Cable UTP Cable UTP WAN PGD-2031P PLC Gateway Internet : UTP Cable : Power Line

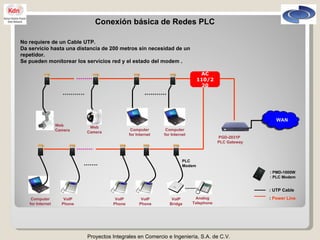

6. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. Conexión básica de Redes PLC No requiere de un Cable UTP. Da servicio hasta una distancia de 200 metros sin necesidad de un repetidor. Se pueden monitorear los servicios red y el estado del modem . Web Camera Computer for Internet Computer for Internet Computer for Internet VoIP Phone VoIP Phone VoIP Bridge Analog Telephone Web Camera VoIP Phone PLC Modem PGD-2031P PLC Gateway : UTP Cable : Power Line : PMD-1000W : PLC Modem WAN AC 110/220

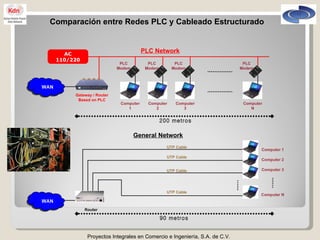

7. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. Comparación entre Redes PLC y Cableado Estructurado Router UTP Cable Computer 1 Computer 2 Computer 3 Computer N UTP Cable UTP Cable UTP Cable WAN General Network 90 metros Computer 1 Computer 2 Computer 3 Computer N PLC Modem PLC Modem PLC Modem PLC Modem Gateway / Router Based on PLC AC 110/220 WAN 200 metros PLC Network

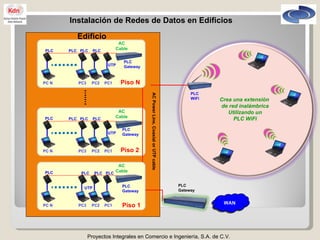

8. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. Instalación de Redes de Datos en Edificios WAN PLC Gateway AC Cable Piso 2 PC1 PC2 PC3 PC N UTP PLC PLC PLC PLC PLC Gateway AC Power Line, Coaxial or UTP cable PLC WiFi Crea una extensión de red inalámbrica Utilizando un PLC WiFi PLC Gateway AC Cable PC1 PC2 PC3 Piso N PC N UTP PLC PLC PLC PLC Edificio PLC Gateway AC Cable Piso 1 PC1 PC2 PC3 PC N UTP PLC PLC PLC PLC

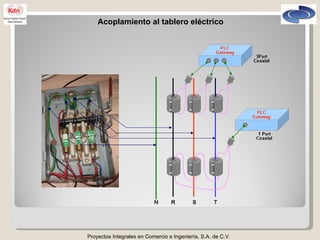

9. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. Acoplamiento al tablero eléctrico

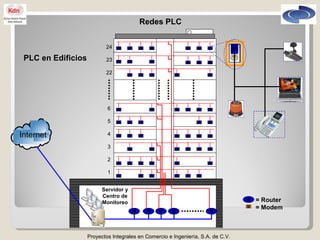

10. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. Redes PLC PLC en Edificios 6 5 4 3 2 1 24 23 22 Internet R R R R R R M = Router = Modem Servidor y Centro de Monitoreo M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M
11.
12.
13.
14.

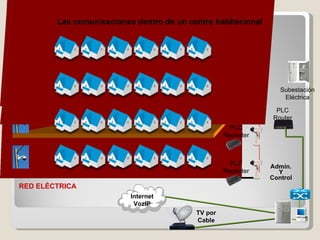

15. Subestación Eléctrica PLC Repeater PLC Repeater PLC Repeater PLC Repeater PLC Router Internet VozIP TV por Cable Admin. Y Control RED ELÉCTRICA Las comunicaciones dentro de un centro habitacional
16. Proyectos Integrales en Comercio e Ingeniería, S.A. de C.V. Red PLC en un Centro Comercial Red de Distribución Eléctrica Caja de Registro Eléctrico Red Eléctrica (PLC) Enchufe PLC
