4.2 concreto 2
- 1. SISTEMAS DE CONSTRUCCIÓN YDE ESTIMACIÓN PROFESOR: Dr. Carolina Stevenson Arquitecta Universidad Nacional Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO

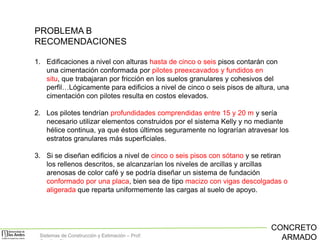

- 2. PROBLEMA B RECOMENDACIONES 1. Edificacionesa nivel con alturas hasta de cinco o seis pisos contarán con una cimentación conformada por pilotes preexcavados y fundidos en situ, que trabajaran por fricción en los suelos granulares y cohesivos del perfil…Lógicamente para edificios a nivel de cinco o seis pisos de altura, una cimentación con pilotes resulta en costos elevados. 2. Los pilotes tendrían profundidades comprendidas entre 15 y 20 m y sería necesario utilizar elementos construidos por el sistema Kelly y no mediante hélice continua, ya que éstos últimos seguramente no lograrían atravesar los estratos granulares más superficiales. 3. Si se diseñan edificios a nivel de cinco o seis pisos con sótano y se retiran los rellenos descritos, se alcanzarían los niveles de arcillas y arcillas arenosas de color café y se podría diseñar un sistema de fundación conformado por una placa, bien sea de tipo macizo con vigas descolgadas o aligerada que reparta uniformemente las cargas al suelo de apoyo. Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 3. 4. Al igualque para edificios de cinco o seis pisos a nivel, edificios de mayor altura, siete, ocho, diez, quince y veinte pisos requerirán también una fundación mediante pilotes, que de acuerdo con el peso de las torres correspondiente a su altura aumentarán en profundidad. A manera de ejemplo, para edificios con alturas de diez pisos seguramente los pilotes tendrían profundidades cercanas a 25 ó 30 m, mientras que para edificios con alturas de quince y veinte pisos, los pilotes alcanzarían profundidades cercanas a 45 ó 50 m. 5. En el caso de que se diseñe un sótano y alturas de edificios hasta de diez pisos, se considera que es viable una solución de fundación combinada placapilotes, donde a la placa se le puede asignar un porcentaje de la carga variable entre el 30% y el 50% y a los pilotes la carga restante. Este sistema es válido con un buen porcentaje de cargas asignado a la placa, siempre y cuando se logre una coincidencia entre el centro de aplicación de la resultante de las cargas y el centro de gravedad de la losa de fundación. Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO

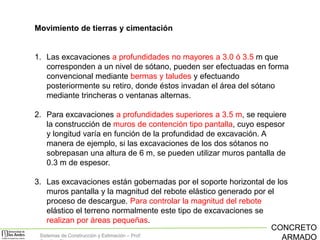

- 4. Movimiento de tierrasy cimentación 1. Las excavaciones a profundidades no mayores a 3.0 ó 3.5 m que corresponden a un nivel de sótano, pueden ser efectuadas en forma convencional mediante bermas y taludes y efectuando posteriormente su retiro, donde éstos invadan el área del sótano mediante trincheras o ventanas alternas. 2. Para excavaciones a profundidades superiores a 3.5 m, se requiere la construcción de muros de contención tipo pantalla, cuyo espesor y longitud varía en función de la profundidad de excavación. A manera de ejemplo, si las excavaciones de los dos sótanos no sobrepasan una altura de 6 m, se pueden utilizar muros pantalla de 0.3 m de espesor. 3. Las excavaciones están gobernadas por el soporte horizontal de los muros pantalla y la magnitud del rebote elástico generado por el proceso de descargue. Para controlar la magnitud del rebote elástico el terreno normalmente este tipo de excavaciones se realizan por áreas pequeñas. CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 5. Movimiento de tierrasy cimentación 4. Para excavaciones únicamente de un sótano se pueden diseñar placas de contrapiso convencionales y bajo las losas filtros en forma de espina de pescado vista en planta, que llevarán las aguas a pozos eyectores. Para excavaciones mayores a 3 m donde se diseñen placas de subpresión, sobre las losas se harán pisos falsos para que el agua que la logre atravesar se conduzca a los pozos eyectores y de allí a filtros o pozos de recarga construidos en la periferia o dependiendo de las dimensiones y profundidades de los sótanos también al sistema de alcantarillado. 5. Por delante de los muros pantalla para excavación de más de dos sótanos, se debe preveer el diseño de muros de limpieza y cañuelas, que podrían requerir fuera del espesor del muro pantalla un espesor adicional cercano a 15 ó 20 cm. Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 6.
- 7. CONTENIDO Concreto in situ Estructuraesqueletal Muros de concreto in situ / Formaletas Sistema Contech Sistema Outinord Entrepisos Concreto Prefabricado Muros con elementos cerámicos de concre Entrepisos Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 8. Concreto Armado El concretoreforzado es utilizado cuando el elemento a construir debe soportar al mismo tiempo esfuerzos de tension, compresion y/o combinaciones (eg. momentos flectores, corte) … CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 9. Concreto Armado Compresión Compresión Eje Neutral Tensión Barras ancladasen los extremos Tensión Canstilla de refuerzo Viga de concreto reforzado soportando la losa Losa y viga integradas por el refuerzo Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 10. Concreto Armado: PRETENSADO Deformación común Tension Elrefuerzo es tensado Compresion Aplicación de cargas de compresión Deformación durante la vida útil Los elementos de concreto pretensado son sometidos intencionadamente a esfuerzos de tensión compresión previos a su puesta en servicio con el objetivo de aumentar su resistencia. CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO

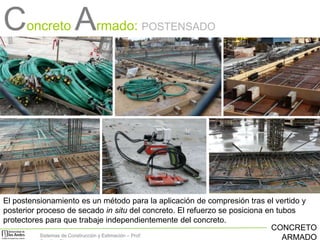

- 11. Concreto Armado: POSTENSADO El postensionamientoes un método para la aplicación de compresión tras el vertido y posterior proceso de secado in situ del concreto. El refuerzo se posiciona en tubos protectores para que trabaje independientemente del concreto. CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 12. Concreto Armado Pros •El coeficientetérmico del concreto es similar al del acero eliminando posibles estrés interior. •El acero corrugado ayuda a mejorar la cohesión entre los dos materiales. •El concreto ayuda a proteger al acero contra la corrosión y el fuego. Cons •Corrosión y congelamiento pueden fácilmente dañar el concreto mal diseñado. •Cuando el acero se corroe expande y tiende a romper el concreto. Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 13. Concreto Reforzado: CON FIBRAS Concretopuede ser reforzado con elementos fibrosos (fibra de vidrio, paja, esterilla) para incrementar su integridad estructural. CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 14. Concreto Reforzado: CON FIBRAS Pros •Mejora cohesión y maleabilidad a larga distancia. • Mejora la resistencia a el congelamiento y fallo explosivo en caso de deshidratación. • Mejora elasticidad y resistencia la impacto. Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 15. Concreto: IN SITU VsPREFABRICADO Concreto In Situ •Fácil de logra continuidad entre elementos. •Facilidad de crear uniones rígidas. •El control de calidad es laborioso. Concreto Prefabricado •Se puede garantizar la calidad. •Facilita la construcción en lotes estrechos. •Puede ser erguido rápido y en mal clima . •Las uniones son mas problemáticas. •Debe ser trasportado al sitio. •Las formas orgánicas son mas complejas de lograr. Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 16. Concreto In Situ Sistemasde Construcción y Estimación – Prof: CONCRETO ARMADO
- 17. Concreto In Situ Elconcreto in situ es un material liquido que se vierte directamente en obra usando formaletas para darle forma mientras endurece y alcanza la resistencia necesaria... CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 18. Concreto In Situ: DISEÑODE MEZCLAS -Se diseñan para obtener resistencias para distintas prácticas. -Se utilizan pruebas para determinar el peso o volumen de: -Cemento -Arena limpia -Agregados PRUEBA POR ESCURRIMIENTO O “SLUMP” Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 19. Concreto In Situ: DISEÑODE MEZCLAS RELACIÓN AGUA – CEMENTO Esta relación debe controlarse frecuentemente con el fin de obtener uniformidad en la resistencia de la mezclas teniendo en cuenta que la humedad puede variar condiciones ambientales o contextuales. Sistemas de Construcción y Estimación – Prof: PREPARACIÓN DE UNA MUESTRA DE CONCRETO PARA PROBAR SU RESISTENCIA MALEABILIDAD DE LA MEZCLA CONCRETO ARMADO
- 20. Concreto In Situ: ENSAYOS CANTIDADDE PRUEBAS -Pruebas correspondientes a cada tipo de concreto -Una pareja de cilindros una vez por día -Una vez cada 40 m³ de estructura de concreto -Una vez cada 200 m² de placa o losa. -Tomar una muestra por cada 25 bachadas de cada clase de concreto -Si el volumen de concreto es tal que la frecuencia de ensayos es menor a 5 ensayos de un mismo concreto, se deben tomar 5 muestras seleccionadas al azar. -Si la cantidadConstrucción y Estimación – Prof: Sistemas de de concreto es La resistencia para estructuras de concreto esta entre los 2.5005.000psi (170-350k/cm2). CONCRETO ARMADO
- 21. Concreto In Situ: PREPARACION MEZCLAA MANO: -Sobre una superficie uniforme -El cemento y la arena deben mezclarse hasta que haya un color uniforme -A la mezcla se agrega agua de amasado del centro hacia los bordes hasta obtener una masa -Se agrega gravilla dándole botes continuos hasta obtener una mezcla homogénea MEZCLA MECÁNICA: -El equipo debe garantizar un control de cantidades de materiales ya sea por peso o volumen -El agua debe ser añadida antes y durante la preparación -La consistencia del concreto –debe Sistemas de Construcción y Estimación Prof: CONCRETO ARMADO
- 22. Concreto In Situ: VACIADO -Elconcreto no debe ser vaciado a más de 45 minutos después de su preparación -No puede ser transbordado ni verterse en caída libre -Previo a verterse, se deben revisar los encofrados de las armaduras y la superficie sobre la cual se vaciaría el concreto -El concreto debe colocarse en capas horizontales, en forma continua -Se debe vibrar adecuadamente -Se puede compactar con rodillo -Durante el fraguado se pueden producir fisuras, para evitarlas se recubre la superficie con paños Sistemas lona. húmedos de de Construcción y Estimación – Prof: CONCRETO ARMADO
- 23. Concreto In Situ: FORMALETA Elconcreto es un material esencialmente moldeable, requiere ser vaciado dentro de un molde. La función de la formaleta es crear una forma en negativo para rellenar y desmoldar en positivo. Debe tener las siguientes propiedades: 1.Reproducir la forma diseñada con exactitud. 2 Prestar la rigidez necesaria para el trajín durante el vaciado. CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 24. Concreto In Situ: FORMALETA 3Tener el ajuste perfecto para que sea hermética y no permita la salida del concreto/pasta . 4.Facilitar la colocación del armado y su recubrimiento manteniendo su posición durante el vertido y vibrado del concreto. 5. Garantizar un buen curado del concreto, evitar la pérdida de agua durante el proceso de fraguado, así como protegerlo de las temperaturas externas. SISTEMAS Sistemas de Construcción y Estimación – Prof: ESQUELETALES
- 25. Concreto In Situ: FORMALETA MATERIAL -Maderaordinaria (material más utilizado) -Madera cepillada (concreto a la vista) -Pino (Cualquier Madera que no contenga Taninos) -Guadua -Lámina de hierro o acero -Tableros Aglomerados PREPARACIÓN, COLOCACIÓN Y DESCIMBRADO -Prefabricación (Formaleta metálica) -Adicionar a las caras ACPM, ACEITE o GRASA/PARAFINA -Las tablas se clavan a los refuerzos mediante taches de hierro, pasadores o tornillo de tuerca y arandela -Colocación centrada: Utilizar puntales, parales, riostras Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 26. FORMALETAS FORMALETAS TRADICIONALES se que humedecer antesde Formaleta de tienenconcreto para evitar que madera verter el tomen agua del concreto y, por lo tanto, absorban cemento. FORMALETAS INDUSTRIALIZADAS Modulares Trepadoras Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 27. FORMALETAS: MADERA Sistemas de Construccióny Estimación – Prof: SISTEMAS ESQUELETALES
- 28. FORMALETAS FORMALETAS TRADICIONALES Soluciones hibridas Formaleta demadera son todavía ampliamente utilizadas. FORMALETAS INDUSTRIALIZADAS Modulares Trepadoras Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 29. FORMALETAS FORMALETAS TRADICIONALES Formaleta de madera FORMALETASse pueden repetir elementos Al modular y ahorrar tiempo en INDUSTRIALIZADAS el montaje y en el desmontaje. Modulares Trepadoras Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 30. FORMALETAS: MODULARES Sistemas de Construccióny Estimación – Prof: SISTEMAS ESQUELETALES
- 31. FORMALETAS FORMALETAS TRADICIONALES Formaleta de madera FORMALETAS INDUSTRIALIZADAS Encofradotrepante es aquel Modularesque se desliza verticalmente y por tanto pierde su apoyo en el suelo. Trepadoras Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 32. FORMALETAS FORMALETAS TRADICIONALES Formaleta de madera FORMALETAS INDUSTRIALIZADAS Secrea una plataforma en cada altura Modularesdonde se puedan realizar los trabajos de encofrado, aplomado y desencofrado, y a su vez debe de servir como soporte estructural para transmitir al muro ejecutado la solicitaciones requeridas. Trepadoras Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES

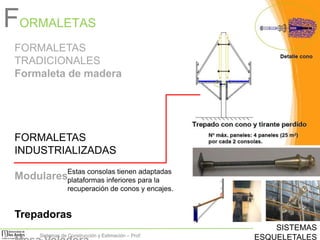

- 33. FORMALETAS FORMALETAS TRADICIONALES Formaleta de madera FORMALETAS INDUSTRIALIZADAS Estasconsolas tienen adaptadas Modularesplataformas inferiores para la recuperación de conos y encajes. Trepadoras Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 34. FORMALETAS: TREPADORA Sistemas de Construccióny Estimación – Prof: SISTEMAS ESQUELETALES
- 35. FORMALETAS: TREPADORA Sistemas de Construccióny Estimación – Prof: SISTEMAS ESQUELETALES
- 36. FORMALETAS FORMALETAS TRADICIONALES Formaleta de madera FORMALETAS INDUSTRIALIZADAS Modulares Trepadoras Sistemasde Construcción y Estimación – Prof: SISTEMAS ESQUELETALES

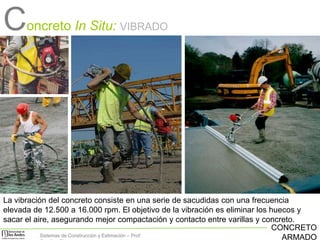

- 37. Concreto In Situ: VIBRADO Lavibración del concreto consiste en una serie de sacudidas con una frecuencia elevada de 12.500 a 16.000 rpm. El objetivo de la vibración es eliminar los huecos y sacar el aire, asegurando mejor compactación y contacto entre varillas y concreto. CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 38. Concreto In Situ: CURADO Elcurado consiste en garantizar que el concreto tenga la cantidad de agua suficiente para que la acción química continúe hasta que se encuentre completamente endurecido. CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 39. Concreto In Situ: CURADO MÉTODOSDE CURADO A. Curado por medio de agua y cubiertas protectoras húmedas B. Aplicación de compuestos selladores a las superficies C. Curado por vapor A . B . Sistemas de Construcción y Estimación – Prof: C . CONCRETO ARMADO
- 40. Proceso constructivo: sistemaesqueletal COLUMNA Paso 0: Lectura e interpretación de planos, cimbrada de la columna Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 41. Proceso constructivo: sistemaesqueletal COLUMNA Paso 1: Armado de refuerzos Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 42. Proceso constructivo: sistemaesqueletal COLUMNA Paso 2: Ubicación de formaletas laterales Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 43. Proceso constructivo: sistemaesqueletal COLUMNA Paso 3: Vertido del concreto Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO

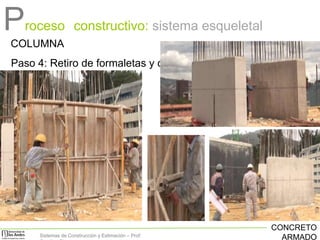

- 44. Proceso constructivo: sistemaesqueletal COLUMNA Paso 4: Retiro de formaletas y curado Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 46. MUROS DE CONCRETOFUNDIDO IN SITU http://www.youtube.com/watch?v=-Uh67yT4VIY&feature=related Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 47. MUROS DE CONCRETOSISTEMA CONTECH Sistema de construcción industrializado que utiliza módulos de aluminio fundido de diferentes dimensiones, que ensamblados conforman la formaleta para los muros de la edificación. Con el sistema se pueden realizar los trabajos de colocación del refuerzo, instalaciones, formaleta y fundida del concreto en un solo día, dejando un tiempo adecuado SISTEMAS Sistemas de Construcción y fragüe y para que el concreto Estimación – Prof: se pueda repetir el mismo proceso ESQUELETALES
- 48. MUROS DE CONCRETOSISTEMA CONTECH Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 49. MUROS DE CONCRETOSISTEMA CONTECH http://www.youtube.com/watch?v=k990Z5E2OQQ&feature=fvsr Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 50. MUROS DE CONCRETOSISTEMA OUTINORD Procedimiento de industrialización en obra gruesa, que permite construir rápidamente basándose en el principio de rotación diaria de la formaleta, permitiendo una velocidad de construcción con baja ocupación de personal. Permite fundir in – situ y en una SISTEMAS Sistemas de Construcción y Estimación – Prof: misma operación muros longitudinales y transversales con sus ESQUELETALES
- 51. MUROS DE CONCRETOSISTEMA OUTINORD Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 52. MUROS DE CONCRETOSISTEMA OUTINORD Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 53. MUROS DE CONCRETOSISTEMA OUTINORD http://www.youtube.com/watch?v=0Mvcsd7DsL4&feature=related Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES

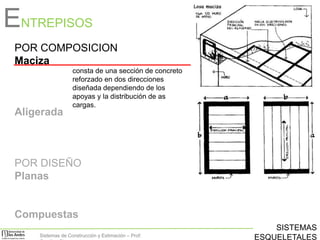

- 54. ENTREPISOS POR COMPOSICION Maciza Aligerada consta deuna sección de concreto reforzado en dos direcciones diseñada dependiendo de los apoyas y la distribución de as cargas. POR DISEÑO Planas Compuestas Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES

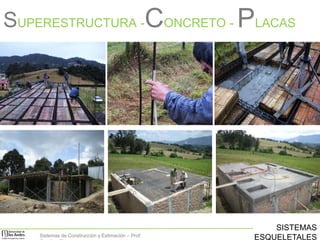

- 55. SUPERESTRUCTURA -CONCRETO -PLACAS Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 56. ENTREPISOS POR COMPOSICION Maciza Aligerada parte delconcreto se remplaza por otros materiales (cajones de madera/ guadua, ladrillos o bloques). De esta forma se disminuye el peso de la losa. POR DISEÑO Planas Compuestas Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 57. SUPERESTRUCTURA -CONCRETO -PLACAS Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 58. SUPERESTRUCTURA -CONCRETO -PLACAS Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 59. ENTREPISOS POR COMPOSICION Maciza Aligerada POR DISEÑO Planas transmitenlas cargas directamente a las columnas, sin la ayuda de vigas. Pueden apoyarse directamente sobre las columnas o Compuestas a través de ábacos, capiteles o una combinación de ambos. Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 60. ENTREPISOS POR COMPOSICION Maciza Aligerada POR DISEÑO Planas transmitenlas cargas a través de vigas y viguetas principalmente. Compuestas Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 61. SUPERESTRUCTURA -CONCRETO -PLACAS Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 62. Concreto P refabricado Sistemas deConstrucción y Estimación – Prof: CONCRETO ARMADO
- 63. Concreto P refabricado Elementos prefabricadosayudan a mejorar calidad y duración del proceso constructivo en concreto. CONCRETO … Sistemas de Construcción y Estimación – Prof: ARMADO
- 64. Concreto P refabricado Los bloquesde concreto (especialmente huecos) ayudan a reducir el peso total de la construcción y a mejorar el aislamiento térmico y acústico. Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 65. Concreto P refabricado PLACAS ALVEOLARES Permitemúltiples aplicaciones en función de su forma de colocación: puede ser horizontal como entrepiso, inclinada como SISTEMAS cubiertaSistemas de Construcción y Estimación – Prof: o rampa, o vertical como cerramiento o muro. ESQUELETALES
- 66. C oncreto Celular de Autoclave ElACC(Autoclaved Cellular Concrete) es un tipo de concreto prefabricado curado bajo alta presión dentro de hornos especiales (autoclaves)… CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 67. C oncreto Celular de Autoclave Pros •Mejora las propiedades de aislamiento térmico • Mejora la resistencia al fuego. • Mejora la relación peso/resistencia. • Mas liviano que ladrillo o típico bloque de concreto . • Mejora las propiedades acústicas. Sistemas de Construcción y Estimación – Prof: CONCRETO ARMADO
- 68. Concreto P refabricado: TILT-UP Sistemascomo el tilt-up ofrecen rapidez y eficacia en la construcción, durabilidad garantizada y control en los acabados. CONCRETO Sistemas de Construcción y Estimación – Prof: ARMADO
- 69. CELDA REFORZADA –BLOQUE DE CONCRETO- La mampostería modular se basa en el fundamento de que el ancho del bloque debe ser múltiplo de su longitud. Ello permite construir distribuciones arquitectónicas basadas a su vez en medidas resultantes de múltiplos de la longitud del bloque. SISTEMAS Sistemas de Construcción y Estimación – Prof: ESQUELETALES
- 70. CELDA REFORZADA –BLOQUE DE CONCRETO La mampostería modular se basa en el fundamento de que el ancho del bloque debe ser múltiplo de su longitud. Ello permite construir distribuciones arquitectónicas basadas a su vez en SISTEMAS medidas resultantesy Estimación – Prof: de múltiplos de la longitud del bloque. Sistemas de Construcción ESQUELETALES
- 71. CELDA REFORZADA –BLOQUE DE CONCRETO- El mortero de pega debe ser lo suficientemente plástico (tamaño máximo del agregado de 12 mm dia.) y los bloques deben ser colocados con la suficiente presión para que el mortero sea expulsado de la junta y los elementos queden bien conectados. El mortero de relleno de SISTEMAS Sistemas de Construcción y Estimación – Prof: ESQUELETALES
- 72. CELDA REFORZADA –BLOQUE DE CONCRETO- Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 73. CELDA REFORZADA –BLOQUE DE CONCRETO- Los bloques de concreto deben permanecer secos antes y durante la colocación, para evitar que al perder humedad en la pared se contraigan y causen grietas. Así SISTEMAS serán capaces de absorber el Sistemas de Construcción y Estimación – Prof: ESQUELETALES
- 74. CELDA REFORZADA –BLOQUE DE CONCRETO1 . 4 . 2 . 5A. 3 . 5B . http://www.youtube.com/watch?v=H2CaWrtsXOc&feature=related Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 75. ENTREPISOS – PLACAFÁCIL CON BLOQUELÓN Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 76. ENTREPISOS- BLOQUE CERAMICO YVIGUETAS SEMIPRE Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 77. ENTREPISOS- BLOQUE CERAMICO YVIGUETAS SEMIPRE Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 78. ENTREPISOS- BLOQUE CERAMICO YVIGUETAS SEMIPRE Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 79. ENTREPISOS- BLOQUE CERAMICO YVIGUETAS SEMIPRE Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 80. ENTREPISOS – SISTEMAPREPLACA Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 81. ENTREPISOS – SISTEMAPREPLACA Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 82. ENTREPISOS – SISTEMAPREPLACA Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
- 83. ENTREPISOS – SISTEMAPREPLACA http://www.youtube.com/watch?v=rzLpB_2P8nU&feature=player_embedd ed#! Sistemas de Construcción y Estimación – Prof: SISTEMAS ESQUELETALES
